Oil Pipe No. 1 Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  4. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  5. Remove the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
  6. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  7. Remove the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
  8. Remove the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  9. Disconnect the connector and wiring harness clip.
    G14589355Courtesy of MAZDA MOTORS CORP.
  10. Place a clean rag behind the engine so that the engine does not contact the rear housing when it is tilted.
    G14589356Courtesy of MAZDA MOTORS CORP.
  11. Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
  12. Disconnect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
  13. Remove the tunnel member.
    G14589357Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  15. Disconnect the TWC from the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  16. Suspend the TWC using a cable as shown in the illustration.
    G14589199Courtesy of MAZDA MOTORS CORP.
  17. Remove the power plant frame. (See POWER PLANT FRAME REMOVAL [M66M-D] .)
  18. Tilt the transmission while being careful not to allow parts on the back of the engine to contact the vehicle body.

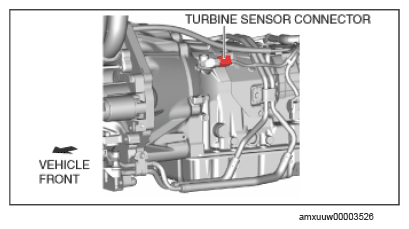

  19. Disconnect the turbine sensor connector.
    G14589359Courtesy of MAZDA MOTORS CORP.

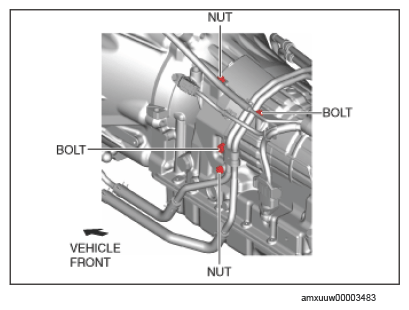

  20. Remove the bolts and nuts.
    G14589360Courtesy of MAZDA MOTORS CORP.

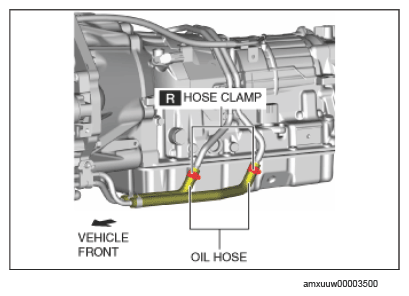

  21. Disconnect the oil hose.
    G14589361Courtesy of MAZDA MOTORS CORP.

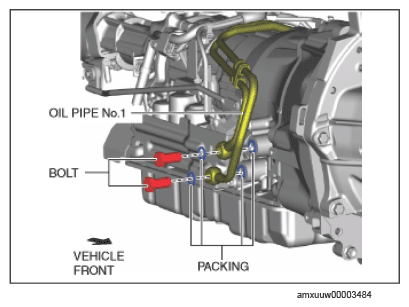

  22. Remove the oil pipe No. 1.
    G14589362Courtesy of MAZDA MOTORS CORP.
  23. Temporarily place oil pipe No. 1 in its installation position.
  24. Install the bolt and nuts.

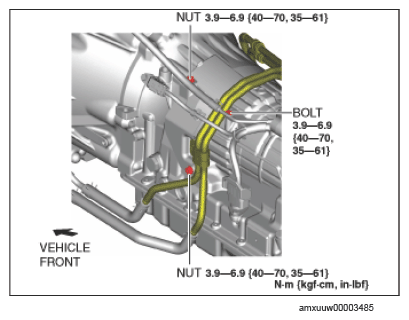

    Fig 1: Oil Pipe No. 1 Nuts And Bolt With Torque Specification
    G14589363Courtesy of MAZDA MOTORS CORP.
  25. Install the oil pipe No. 1 using the following procedure:
    1. Temporarily tighten bolt A and B.

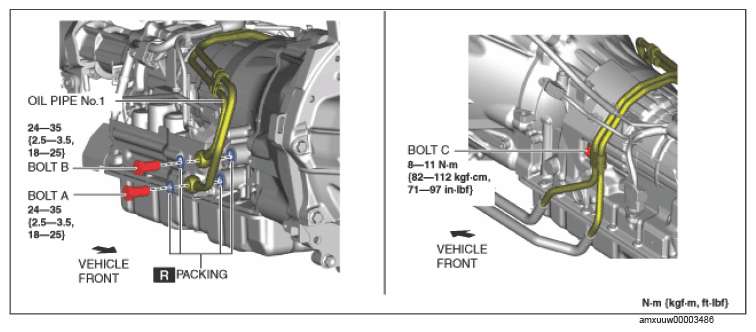

      Fig 2: Oil Pipe No. 1 Bolts With Torque Specification
      G14589364Courtesy of MAZDA MOTORS CORP.
    2. After lightly tightening bolt C, completely tighten it.
    3. Completely tighten bolts A and B in the order of A and B.

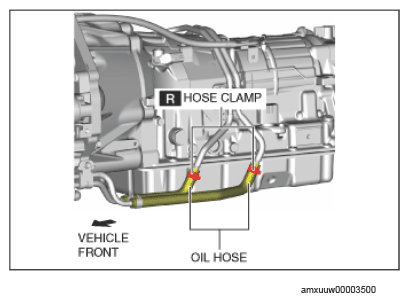

  26. Connect the oil hose. (See OIL HOSE INSTALLATION NOTE .)
    G14589365Courtesy of MAZDA MOTORS CORP.

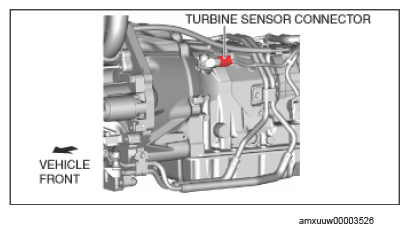

  27. Connect the turbine sensor connector.
    G14589366Courtesy of MAZDA MOTORS CORP.
  28. Install the power plant frame. (See POWER PLANT FRAME INSTALLATION [M66M-D] .)

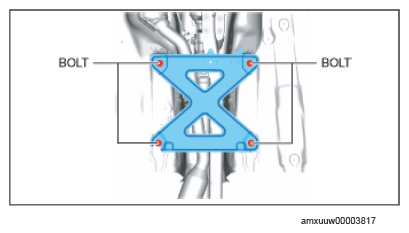

  29. Remove the tunnel member temporarily.
    G14589367Courtesy of MAZDA MOTORS CORP.
  30. Connect the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  31. Connect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  32. Install the tunnel member.
    Fig 3: Tunnel Member Bolts With Torque Specification
    G14589368Courtesy of MAZDA MOTORS CORP.
  33. Connect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
  34. Install the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)

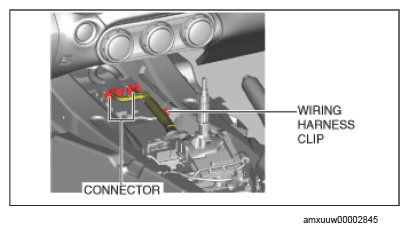

  35. Connect the connector and wiring harness clip.
    G14589369Courtesy of MAZDA MOTORS CORP.
  36. Install the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  37. Install the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
  38. Install the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  39. Install the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
  40. Install the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  41. Install the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  42. Install the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
  43. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  44. Inspect for oil leakage from the oil pipes and oil hoses.
  45. Inspect the ATF level and condition. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .)
