Shift Panel Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the selector lever knob. (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
Remove the shift lever knob. (MT)

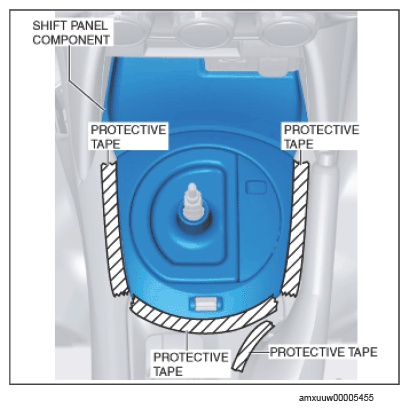

To prevent scratches or damage, apply protective tape to the positions shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Insert a remover tool into the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

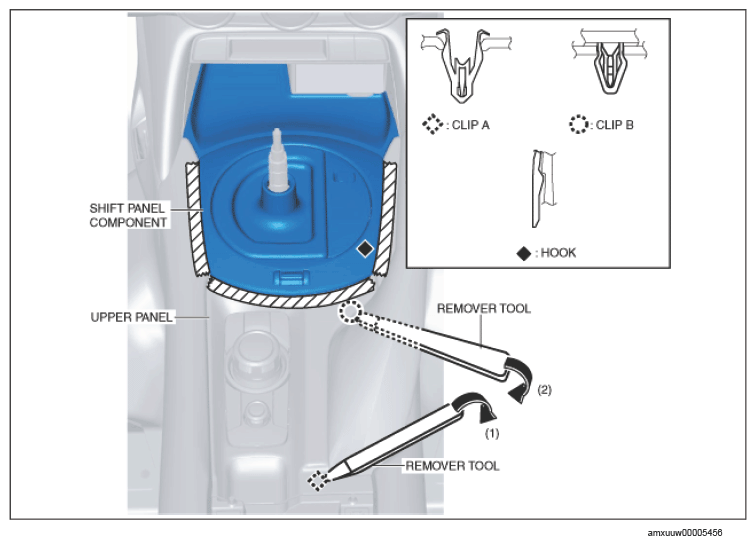

Move the remover tool in the order of arrows (1) and (2) shown in the illustration and detach clips A and B, and the hook from the rear console to secure a space for inserting the remover tool into the lower area of the shift panel component.

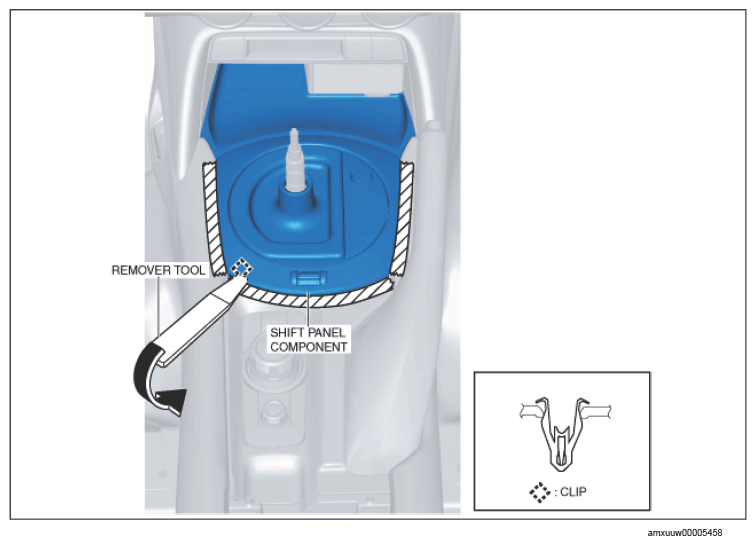

Insert a remover tool into the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
With the remover tool inserted, press the upper panel in the direction of the arrow shown in the illustration and detach the shift panel component clip from the upper panel.
Move the remover tool in the direction of the arrow shown in the illustration and detach the hook from the rear console.

Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the illustration and detach the clip from the rear console.

Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the illustration and detach the hooks in the order of (1) and (2).

Courtesy of MAZDA MOTORS CORP.
Move the shift panel component in the direction of the arrow shown in the illustration and remove the guides.

Courtesy of MAZDA MOTORS CORP.
Disconnect the indicator connector.
Remove the shift panel component.
Remove the console panel when replacing the shift panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
