Cd Player Removal/Installation

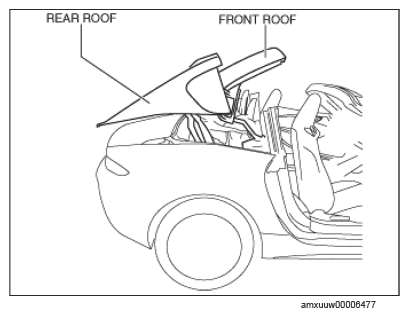

  1. Using the retractable fastback switch, keep the front roof half-open. (retractable fastback)
    G14603334Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION .)
    13. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)

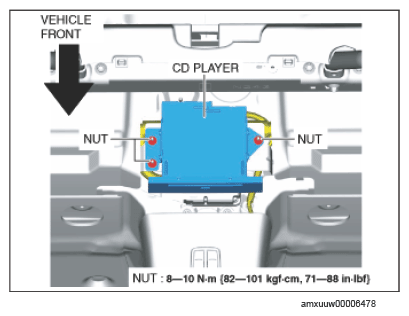

  4. Remove the nuts.
    Fig 1: CD Player Nuts With Torque Specification
    G14603335Courtesy of MAZDA MOTORS CORP.

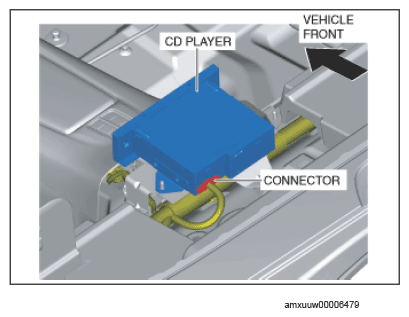

  5. Disconnect the connector.
    G14603336Courtesy of MAZDA MOTORS CORP.
  6. Remove the CD player.

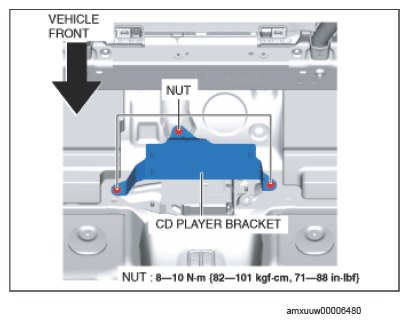

  7. To remove the CD player bracket, remove the nuts and then remove the CD player bracket.
    Fig 2: CD Player Bracket Nuts With Torque Specification
    G14603337Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
