Tire House Trim Removal/Installation

  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the fasteners.
    G14603099Courtesy of MAZDA MOTORS CORP.

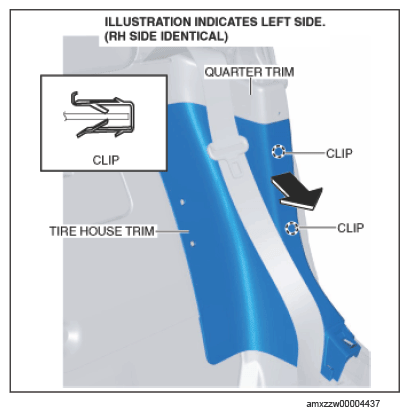

  3. Move the tire house trim in the direction of the arrow shown in the illustration and detach the clips from the body panel.
    G14603100Courtesy of MAZDA MOTORS CORP.
  4. Move the tire house trim in the direction of the arrow shown in the illustration and detach the clip and guide from the body panel.
    G14603101Courtesy of MAZDA MOTORS CORP.
  5. Remove the tire house trim while sliding it in the direction of the arrow shown in the illustration.
    G14603102Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
