Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Affix tape shown in the figure and install the antenna feeder No. 2.

    Without sunroof

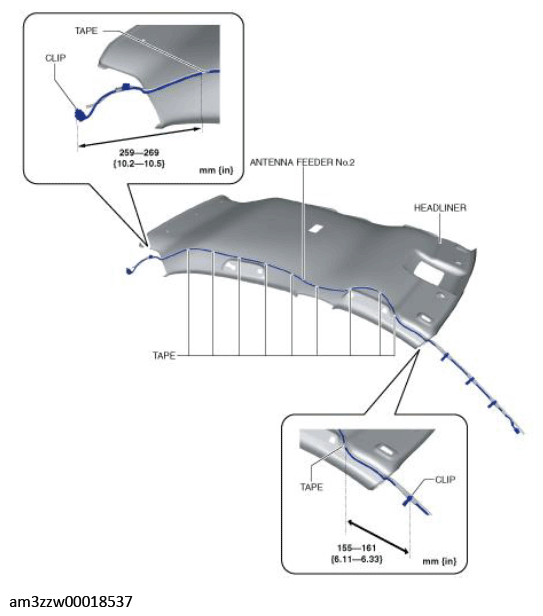

    Fig 1: Affixing Tape On Antenna Feeder No. 2 Without Sunroof
    G11448720Courtesy of MAZDA MOTORS CORP.

    With sunroof

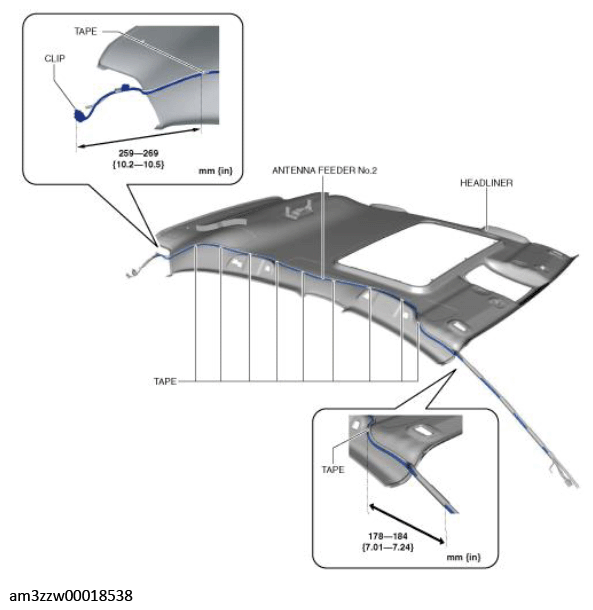

    Fig 2: Affixing Tape On Antenna Feeder No. 2 With Sunroof
    G11448721Courtesy of MAZDA MOTORS CORP.
  2. Install the following parts:
    1. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
    2. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. CD player (with CD player) (See CD PLAYER INSTALLATION .)
    7. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    9. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    10. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    11. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    12. Upper panel (See UPPER PANEL INSTALLATION .)
    13. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    14. Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    15. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    16. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    17. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    18. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    19. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    20. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    21. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    22. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    23. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    24. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    25. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    26. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    27. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    28. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    29. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    30. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
  3. Shift the selector lever from the D position to the P position. (ATX)
  4. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  5. Remove the wheel blocks on the front and rear wheels. (without electric parking brake)
