Hatchback (5HB): Passenger-side

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the wheel blocks for both the front and rear wheels (without electric parking brake).
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Shift the selector lever from the P position to the D position (ATX).
  4. Remove the following parts:
    1. Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    4. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    8. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    9. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    11. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    12. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    13. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    14. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    15. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    16. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    17. Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    18. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    19. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    20. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    21. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    22. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    23. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    24. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    25. CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    26. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    27. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    28. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    29. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    30. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  5. Disconnect the front drain hose from the sunroof frame.
    Fig 1: Disconnecting Front Drain Hose From Sunroof Frame
    G11452945Courtesy of MAZDA MOTORS CORP.

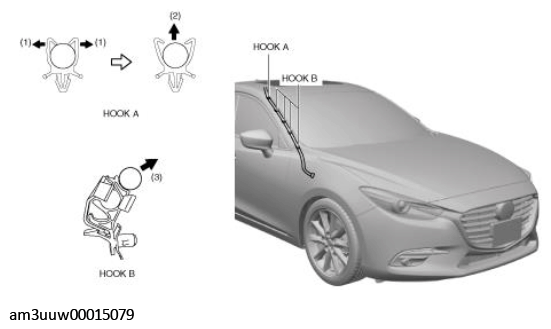

  6. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching the hook A.
    Fig 2: Pulling Front Drain Hose
    G11452955Courtesy of MAZDA MOTORS CORP.
  7. Remove the front drain hose in the direction of the arrow (3) from the hooks B.
  8. Remove the front drain hose in the direction of the arrow (1) from the grommet.
    Fig 3: Removing Front Drain Hose From Grommet
    G11452947Courtesy of MAZDA MOTORS CORP.
  9. Remove the grommet in the direction of the arrow (2), (3) shown in the figure.
  10. Pull the front drain hose out from the A-pillar side.
    Fig 4: Pulling Front Drain Hose Out From A-Pillar Side
    G11430386Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
