Antenna Feeder No. 3 Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    5. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    6. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    7. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    8. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    9. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    10. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    13. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Peel back the trunk side trim and remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    NOTE:
    • To facilitate the procedure, leave the C-pillar trim in the cabin without pulling the rear seat belt.
  4. Remove the fasteners.

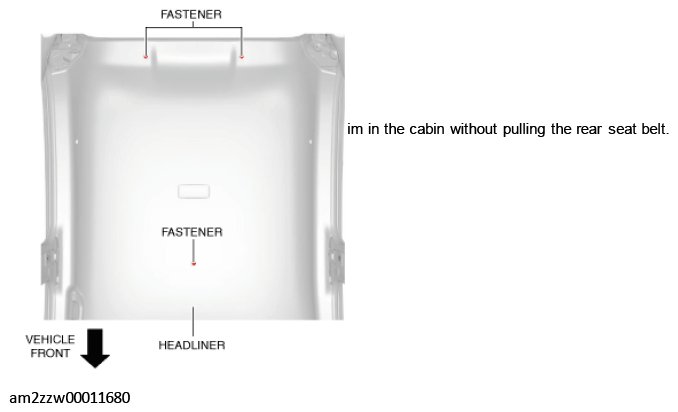

    Fig 1: Installing Fasteners
    G11433964Courtesy of MAZDA MOTORS CORP.
  5. Peel back the seaming welt of the rear door and the liftgate.
    CAUTION:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  6. Partially peel back the headliner.
  7. Disconnect the antenna feeder No. 2 connector.

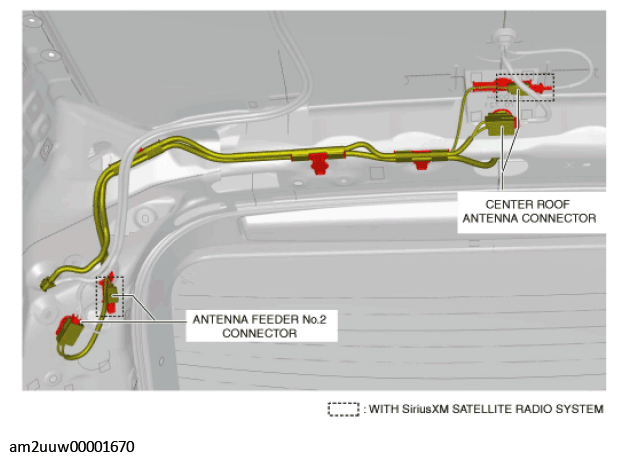

    Fig 2: Disconnecting Center Roof Antenna Connector
    G11433965Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the center roof antenna connector.
  9. Verify that the continuity between antenna feeder No. 3 terminals is as indicated in the table.

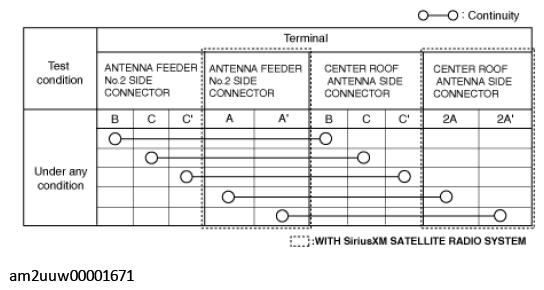

    Fig 3: Antenna Feeder No. 3 Terminals Continuity Chart
    G11433966Courtesy of MAZDA MOTORS CORP.

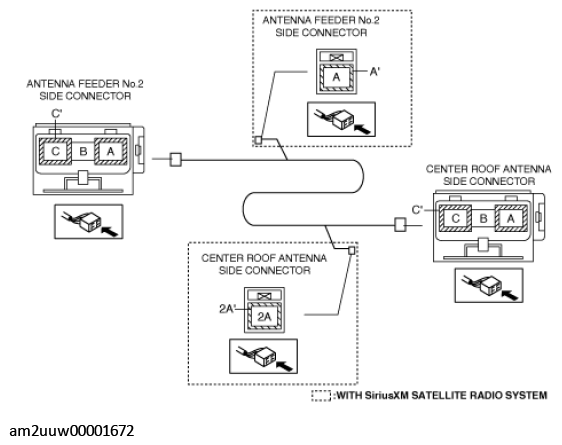

    Fig 4: Checking Continuity Between Antenna Feeder No. 3 Terminals
    G11433967Courtesy of MAZDA MOTORS CORP.
