Antenna Feeder No. 3 Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    5. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    6. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    7. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    8. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    9. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    10. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Remove the fasteners.

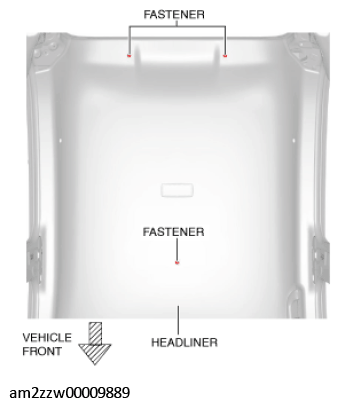

    Fig 1: Removing Fasteners
    G11433968Courtesy of MAZDA MOTORS CORP.
  4. Peel back the seaming welt of the rear door and the liftgate.
  5. Partially peel back the headliner.
    CAUTION:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  6. Partially peel back the liftgate grommet.

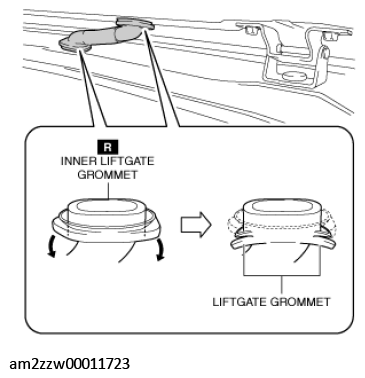

    Fig 2: Locating Liftgate Grommet
    G11433969Courtesy of MAZDA MOTORS CORP.
  7. While pressing the tabs of the inner liftgate grommet in the direction of arrow (1) shown in the figure, pull the inner liftgate grommet in the direction of arrow (2) and detach the tabs of the inner liftgate grommet from the liftgate.

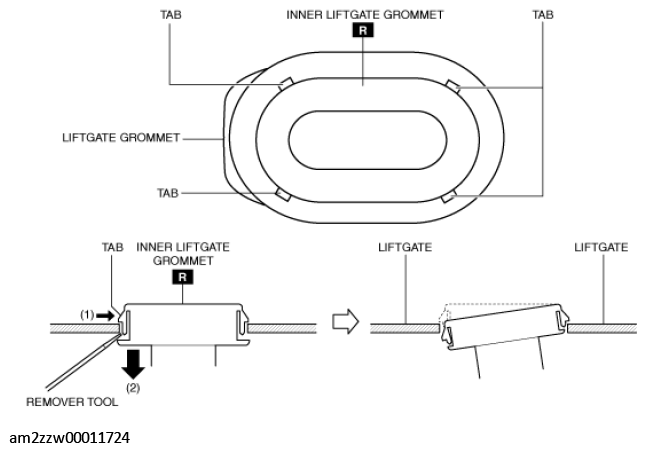

    Fig 3: Pressing Tabs Of Inner Liftgate Grommet
    G11433970Courtesy of MAZDA MOTORS CORP.
  8. Detach all the tabs of the inner liftgate grommet from the liftgate and remove the inner liftgate grommet.
  9. Disconnect rear washer hose D from joint pipe E.

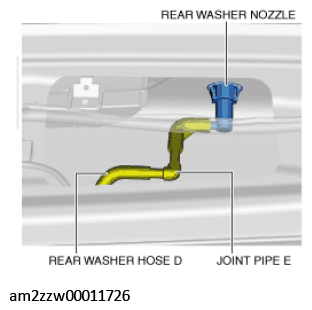

    Fig 4: Disconnecting Rear Washer Hose D From Joint Pipe E
    G11433971Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the connectors.

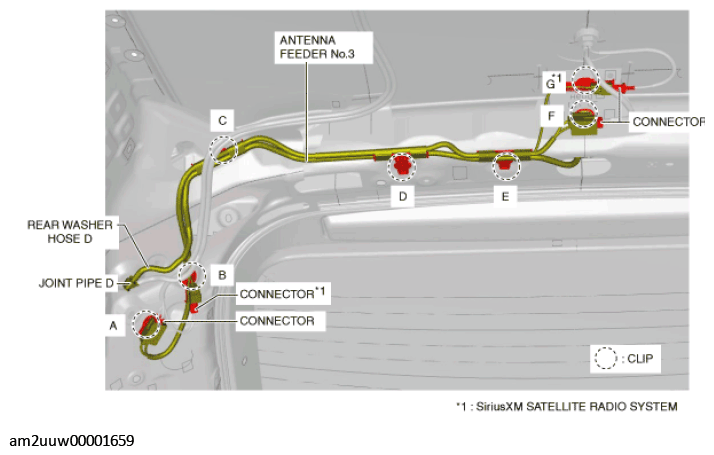

    Fig 5: Removing Antenna Feeder No. 3 Clips A, B, C
    G11433972Courtesy of MAZDA MOTORS CORP.
  11. Disconnect rear washer hose D from joint pipe D.
  12. Remove clips A, B, C, D, E, F, and G in the position shown in the figure.
  13. Remove antenna feeder No. 3.
  14. Install in the reverse order of removal.
