Antenna Feeder No. 2 Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    5. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    6. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    7. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    9. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    10. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    11. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Peel back the trunk side trim and remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    NOTE:
    • To facilitate the procedure, leave the C-pillar trim in the cabin without pulling the rear seat belt.
  4. Disconnect the connector.

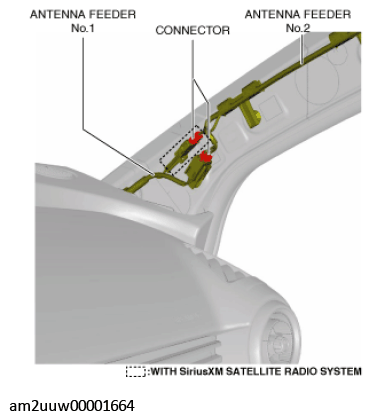

    Fig 1: Disconnecting Antenna Feeder No. 2 Connector
    G11433953Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

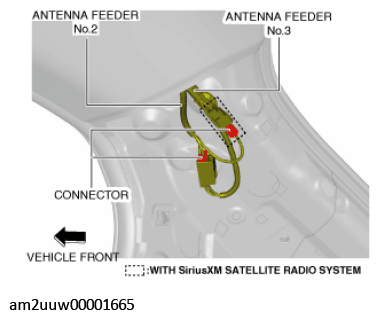

    Fig 2: Disconnecting Antenna Feeder No. 2 And Antenna Feeder No. 3 Connector
    G11433959Courtesy of MAZDA MOTORS CORP.
  6. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.

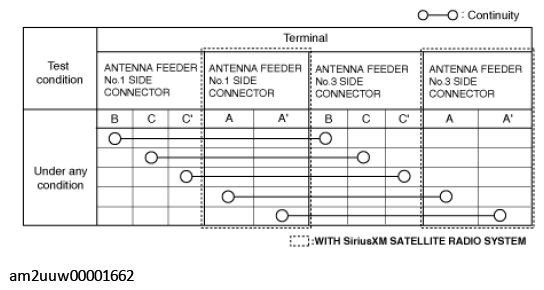

    Fig 3: Antenna Feeder No. 2 Terminals Continuity Chart
    G11433960Courtesy of MAZDA MOTORS CORP.
    Fig 4: Checking Continuity Between Antenna Feeder No. 2 Terminals
    G11433961Courtesy of MAZDA MOTORS CORP.
