Rear Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
    2. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
    3. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
    4. Tire house trim. See TIRE HOUSE TRIM REMOVAL/INSTALLATION .
  2. Remove the rear seat belt lower anchor installation bolt.
  3. Remove the C-pillar trim. See C-PILLAR TRIM REMOVAL/INSTALLATION .
  4. Remove the rear package trim. . REAR PACKAGE TRIM REMOVAL/INSTALLATION .
    Fig 1: Rear Seat Belt, Lower Anchor And Bolt With Torque Specifications
    G06206096Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the rear seat belt.
  7. Install in the reverse order of removal.

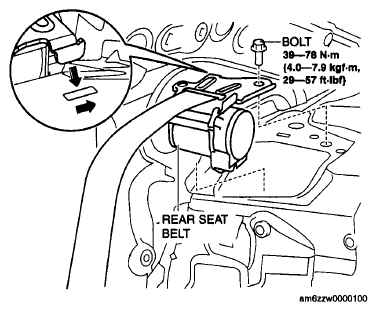

    Fig 2: Rear Seat Belt And Bolt With Torque Specifications
    G06206097Courtesy of MAZDA MOTORS CORP.
