Tire House Trim Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION )
- Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION )
- Remove the rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION )
- Remove the fastener.

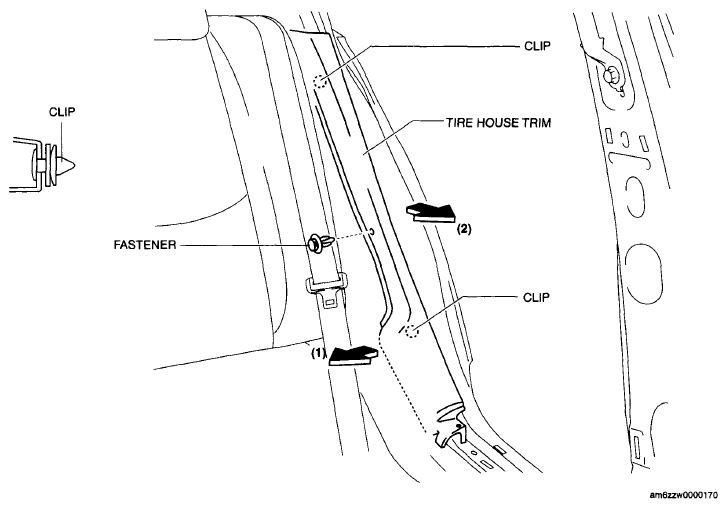

- Pull the tire house trim in the direction of the arrow (1) shown in the figure and remove it while detaching the clips, remove the tire house trim in the direction of the arrow (2).
- Install in the reverse order of removal.
