Rear Package Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. High-mount brake light. See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .
    2. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
    3. C-pillar trim. See C-PILLAR TRIM REMOVAL/INSTALLATION .
    4. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION )
  2. Fold the rear seat back
  3. Remove the fastener.

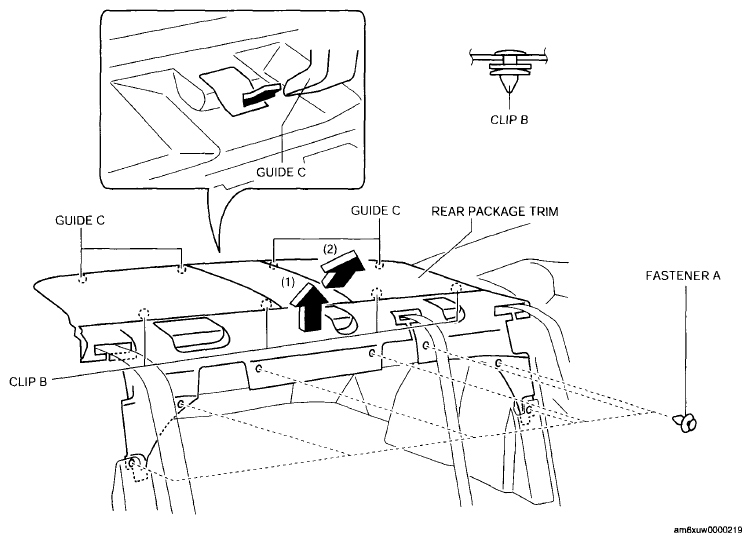

    Fig 1: Identifying Rear Package Trim
    G06199490Courtesy of MAZDA MOTORS CORP.
  4. Pull up the rear package trim in the direction of the arrow (1) shown in the figure to remove the clips, pull the rear package trim in the direction of the arrow (2), and remove it while pulling out the guides.
  5. Install in the reverse order of removal.
