Disassembly [09/2023 - 12/2023]: Procedure

  1. REMOVE HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)
    Refer to PROCEDURE - Step 1
  2. REMOVE HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)
    1. Use the same procedure as for the LH side.
  3. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 4

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
    1. Use the same procedure as for the LH side.
  5. REMOVE NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)
    Refer to PROCEDURE - Step 6
  6. REMOVE WASHER BRACKET (w/ Headlight Cleaner System)
    1. Use the same procedure as for the No. 2 washer bracket.

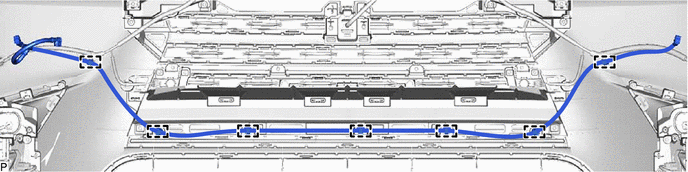

  7. REMOVE WASHER HOSE (w/ Headlight Cleaner System)
    1. GTY1235245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  9. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 5

  10. REMOVE FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 6

  11. REMOVE FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 11
  12. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    Refer to PROCEDURE - Step 2
  13. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 3

  14. REMOVE FOG LIGHT UNIT LH

    Refer to PROCEDURE - Step 4

  15. REMOVE FOG LIGHT UNIT RH
    1. Use the same procedure as for the LH side.
  16. REMOVE CORNERING LIGHT ASSEMBLY LH (w/ Cornering Light)

    Refer to PROCEDURE - Step 4

  17. REMOVE CORNERING LIGHT ASSEMBLY RH (w/ Cornering Light)
    1. Use the same procedure as for the LH side.

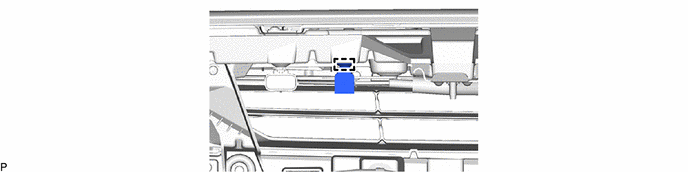

  18. REMOVE CONNECTOR COVER (w/ Connector Cover)
    1. GTY1237203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

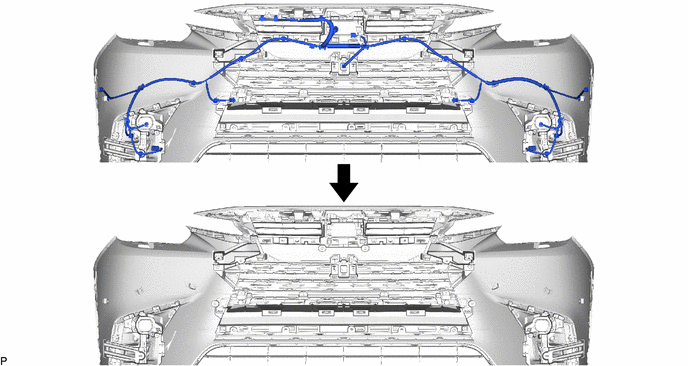

  19. REMOVE NO. 4 ENGINE ROOM WIRE

    HINT:

    The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

    1. GTY1235243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

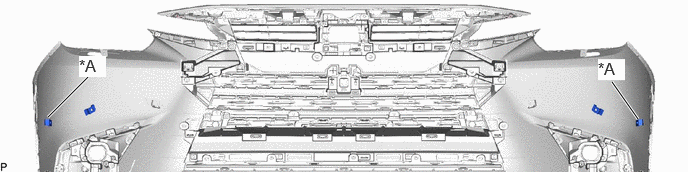

  20. REMOVE FRONT ULTRASONIC SENSOR CLIP
    1. GTY1231125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park - -

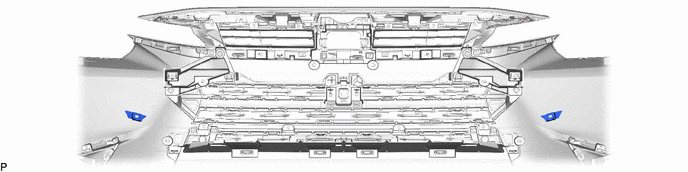

  21. REMOVE NO. 2 FRONT ULTRASONIC SENSOR CLIP
    1. GTY1235240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    Refer to PROCEDURE - Step 1

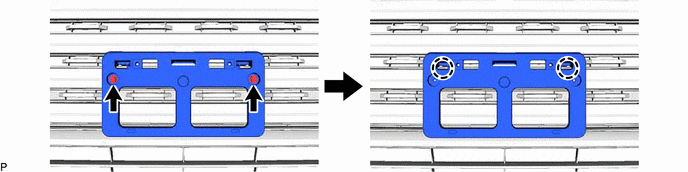

  23. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. GTY1235228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

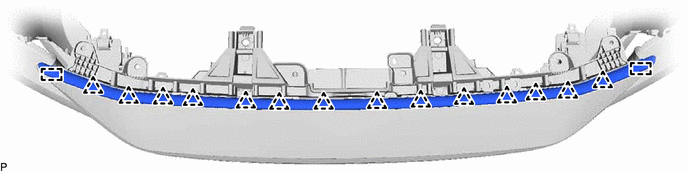

  24. REMOVE HOOD TO FRONT END PANEL SEAL
    1. GTY1240628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

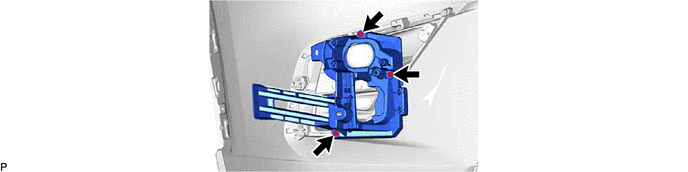

  25. REMOVE FOG LIGHT MOUNTING BRACKET LH
    1. GTY1235238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FOG LIGHT MOUNTING BRACKET RH
    1. Use the same procedure as for the LH side.

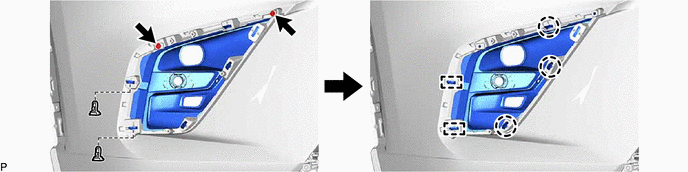

  27. REMOVE FOG LIGHT COVER LH
    1. GTY1240629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FOG LIGHT COVER RH
    1. Use the same procedure as for the LH side.
  29. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 10

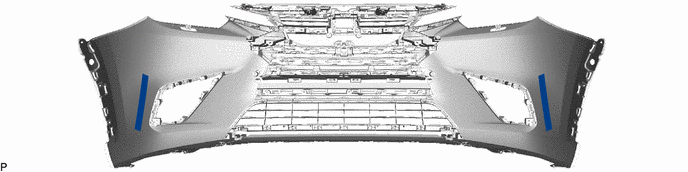

  30. REMOVE NO. 1 MOULDING TAPE
    1. GTY1235236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

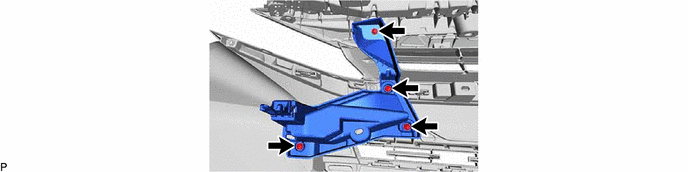

  31. REMOVE FRONT BUMPER SIDE BRACKET LH
    1. GTY1235230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT BUMPER SIDE BRACKET RH
    1. Use the same procedure as for the LH side.
  33. REMOVE NO. 1 FRONT BUMPER LOWER RETAINER
    1. GTY1235229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. The orientation for the RH side is the opposite of the LH side.

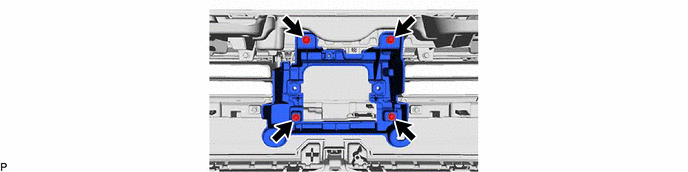

  34. REMOVE NO. 2 RADIATOR GRILLE BRACKET
    1. GTY1235231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

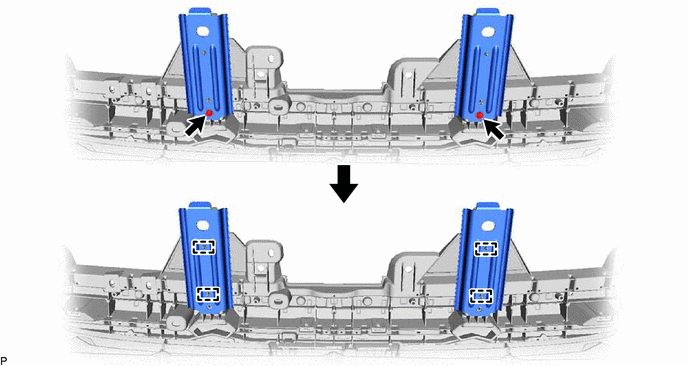

  35. REMOVE FRONT BUMPER UPPER RETAINER
    1. GTY1240627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

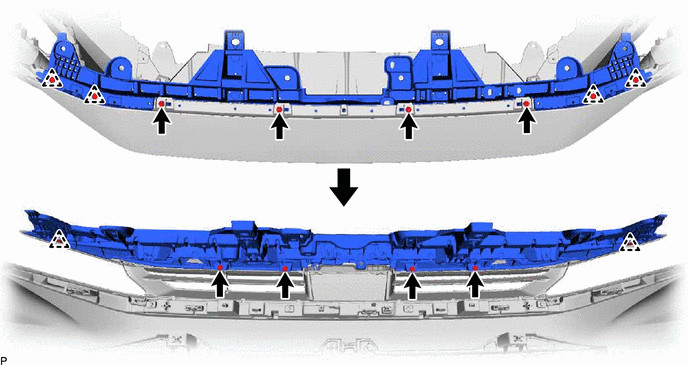

  36. REMOVE RADIATOR GRILLE BRACKET
    1. GTY1235226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

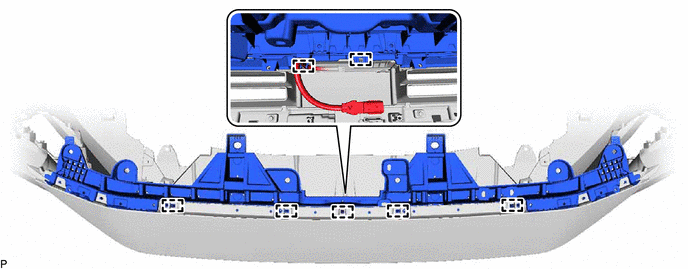

    2. GTY1235225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

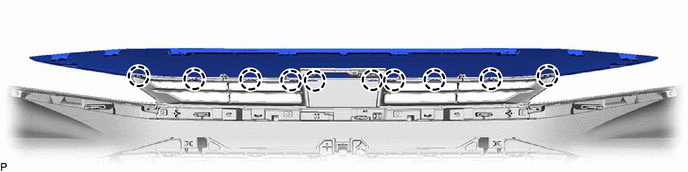

  37. REMOVE FRONT BUMPER MOULDING
    1. GTY1235223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

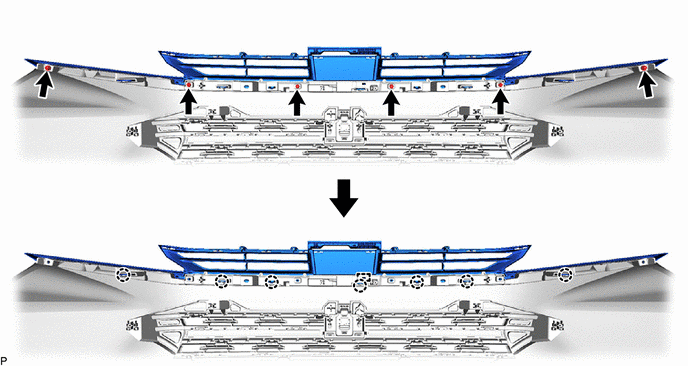

  38. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
    1. GTY1235227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

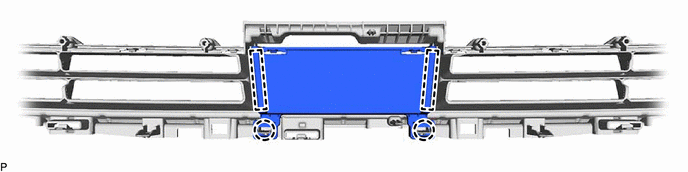

  39. REMOVE NO. 2 RADIATOR GRILLE GARNISH (w/o Heater)
    1. GTY1235290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

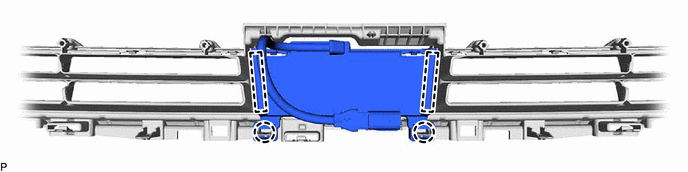

  40. REMOVE NO. 2 RADIATOR GRILLE GARNISH (w/ Heater)
    1. GTY1234632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

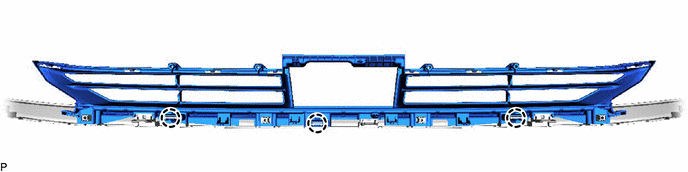

  41. REMOVE RADIATOR GRILLE GARNISH
    1. GTY1240640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

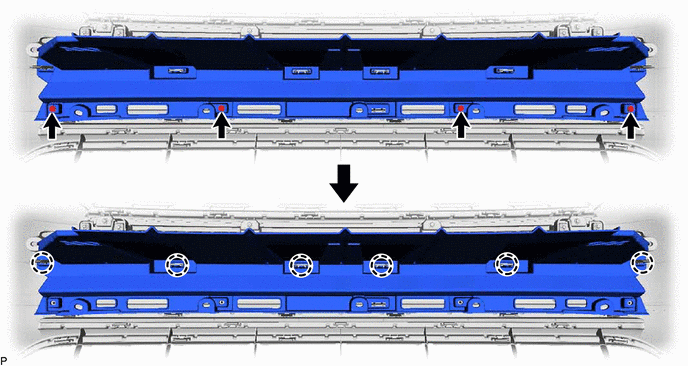

  42. REMOVE NO. 1 RADIATOR GRILLE SEAL
    1. GTY1235288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

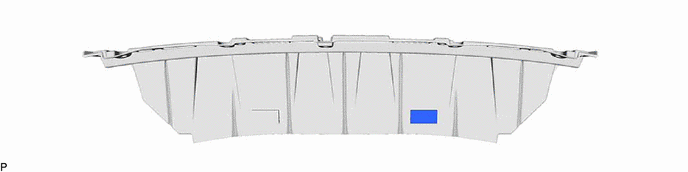

  43. REMOVE FRONT BUMPER PAD LH
    1. GTY1240639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE FRONT BUMPER PAD RH
    1. Use the same procedure as for the LH side.

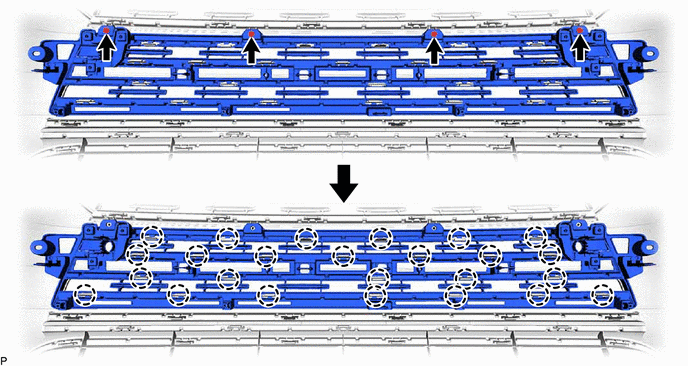

  45. REMOVE RADIATOR GRILLE

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1235283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 9

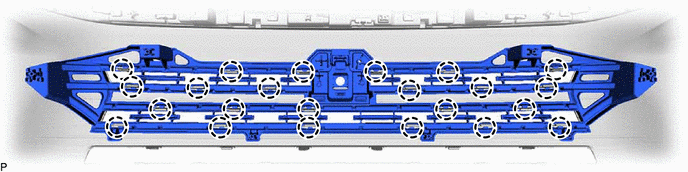

  47. REMOVE RADIATOR GRILLE ASSEMBLY

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1235282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

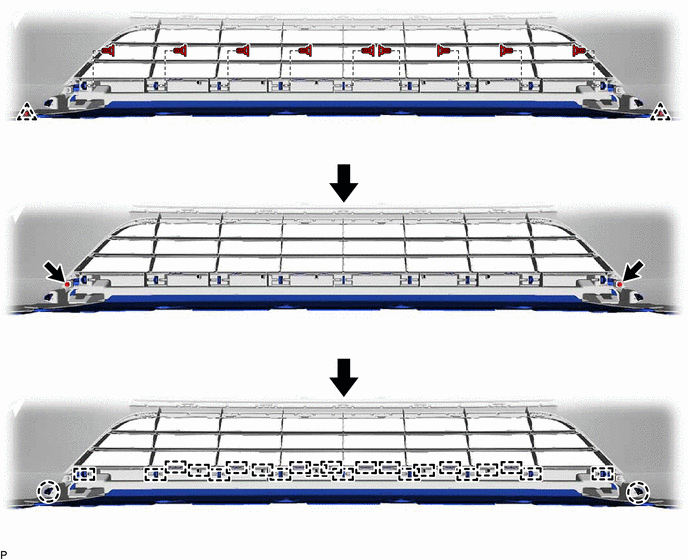

  48. REMOVE FRONT BUMPER GUARD
    1. GTY1240638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

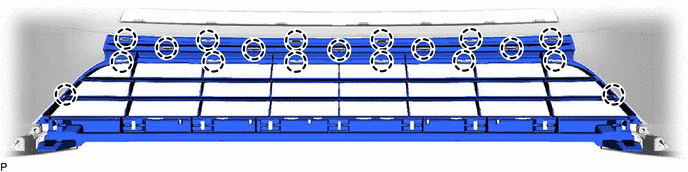

  49. REMOVE NO. 1 LOWER RADIATOR GRILLE
    1. GTY1235281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

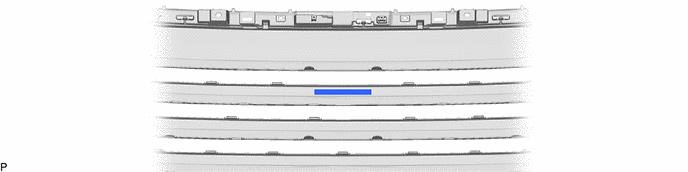

  50. REMOVE FRONT BUMPER PROTECTOR
    1. GTY1236112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

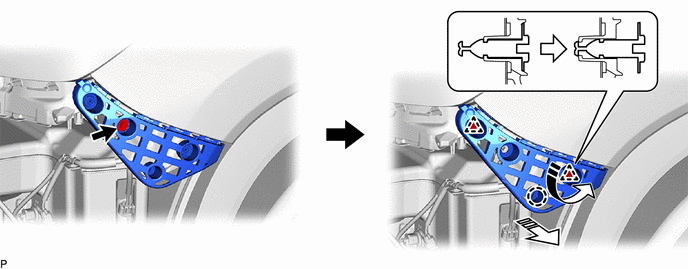

  51. REMOVE FRONT BUMPER SIDE RETAINER LH

    HINT:

    Perform this procedure only when replacement of the front bumper side retainer LH is necessary.

    1. GTY1240711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  52. REMOVE FRONT BUMPER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.

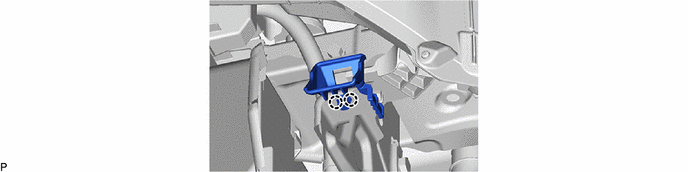

  53. REMOVE NO. 2 FRONT BUMPER LOWER RETAINER

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper lower retainer is necessary.

    1. GTY1237209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. The orientation for the RH side is the opposite of the LH side.
  54. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  55. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

    Refer to PROCEDURE - Step 6

  56. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

    Refer to PROCEDURE - Step 7

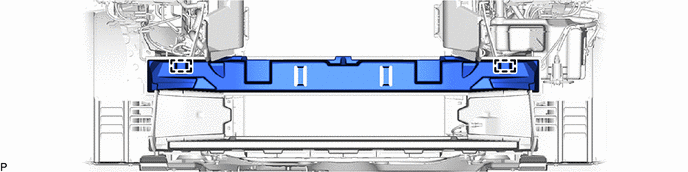

  57. REMOVE FRONT BUMPER ENERGY ABSORBER

    HINT:

    Perform this procedure only when replacement of the front bumper energy absorber is necessary.

    1. GTY1237208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

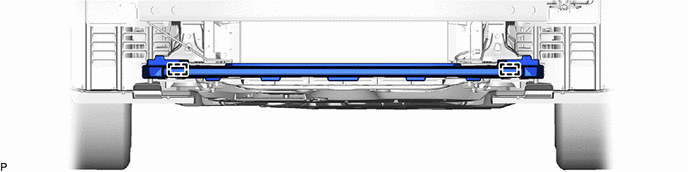

  58. REMOVE FRONT BUMPER LOWER ABSORBER

    HINT:

    Perform this procedure only when replacement of the front bumper lower absorber is necessary.

    1. GTY1237204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY (w/ Acoustic Vehicle Alerting System)

    Refer to PROCEDURE - Step 2

  60. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper reinforcement sub-assembly is necessary.

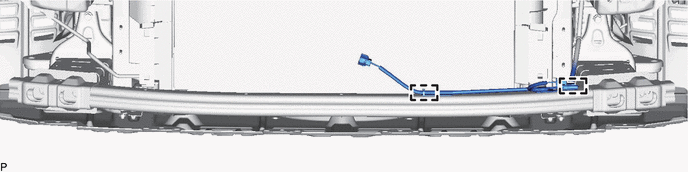

    1. w/ Acoustic Vehicle Alerting System:
      GTY1198104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

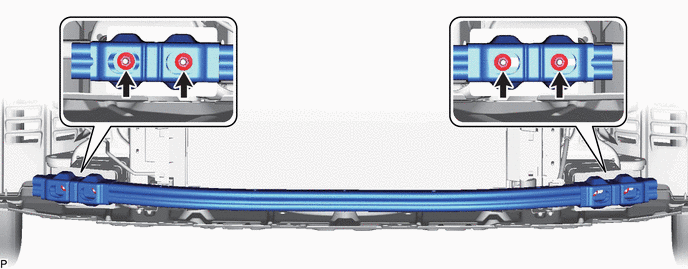

    2. GTY1198102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

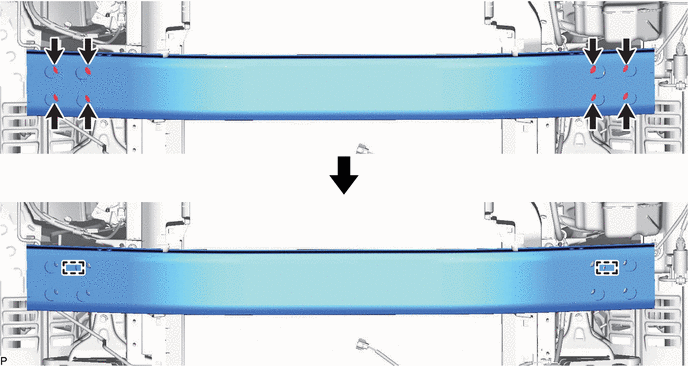

  61. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

    1. GTY1198106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.

    Refer to PROCEDURE - Step 7

  63. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
    1. Use the same procedure as for the LH side.

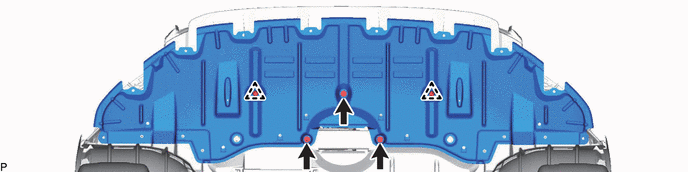

  64. REMOVE NO. 1 ENGINE UNDER COVER

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.

    1. GTY1198255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

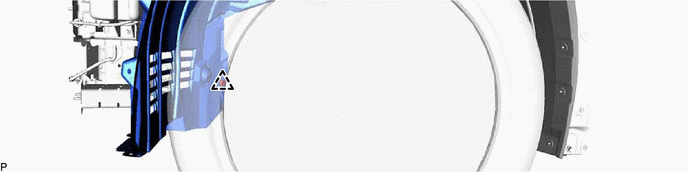

  65. DISCONNECT FRONT FENDER LINER LH

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.

    1. GTY1198253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. DISCONNECT FRONT FENDER LINER RH
    1. Use the same procedure as for the LH side.
  67. REMOVE SUSPENSION TOWER DAMPER (w/ Suspension Tower Damper)
    Refer to PROCEDURE - Step 4

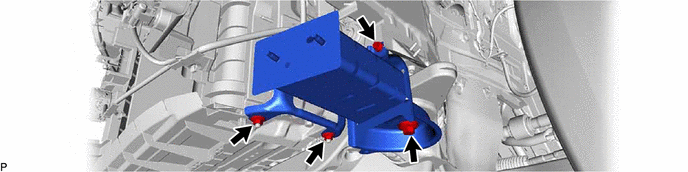

  68. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.

    1. GTY1198263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
