Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

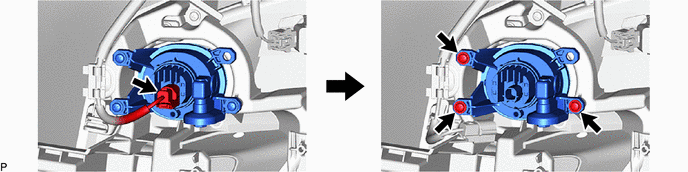

  4. REMOVE FOG LIGHT UNIT
    1. GTY1239187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
