Disassembly [09/2023 - ]: Procedure

  1. REMOVE FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  3. REMOVE FRONT BUMPER SIDE RETAINER

    Refer to PROCEDURE - Step 51 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 52 [12/2023 - ]

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT FENDER SPLASH SHIELD SEAL FRONT

    Refer to PROCEDURE - Step 8

  6. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  7. REMOVE FRONT WHEEL OPENING EXTENSION PAD

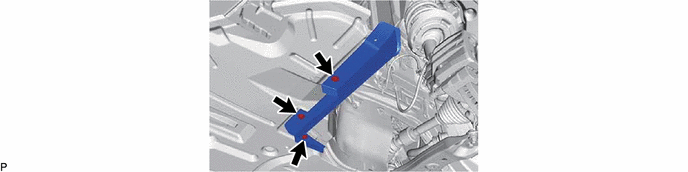

    1. GTY1197447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT FENDER LINER

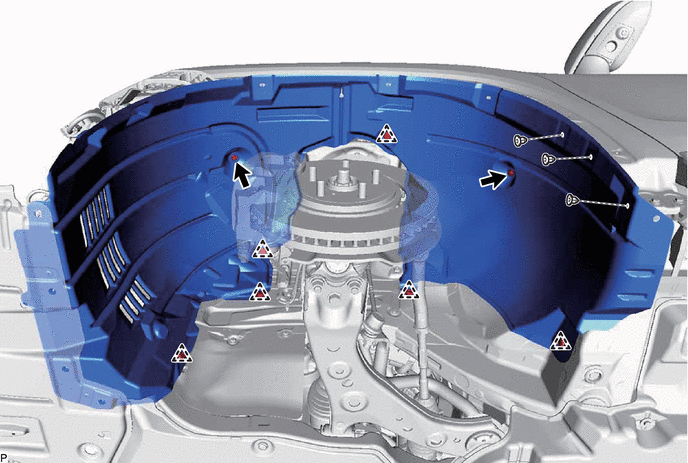

    1. GTY1197446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT FENDER SEAL

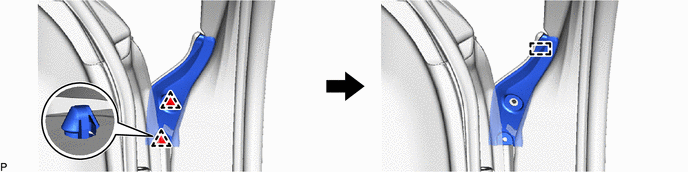

    1. GTY1234871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT FENDER SIDE PANEL PROTECTOR

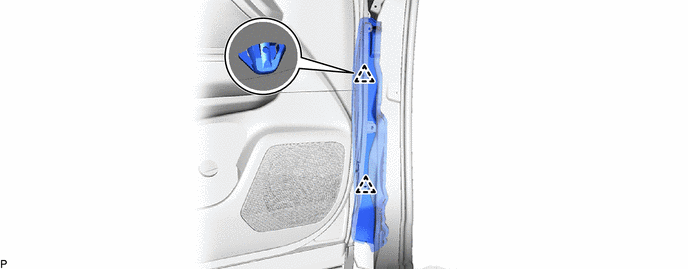

    1. GTY1234870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT NO. 2 FENDER NAME PLATE (for Sport Package)
    See step  4 [09/2023 - 12/2023], or see step  4 [12/2023 - ]
  12. REMOVE FRONT FENDER PANEL

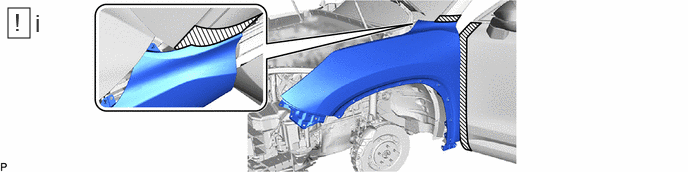

    1. GTY1228700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the front fender panel as shown in the illustration.

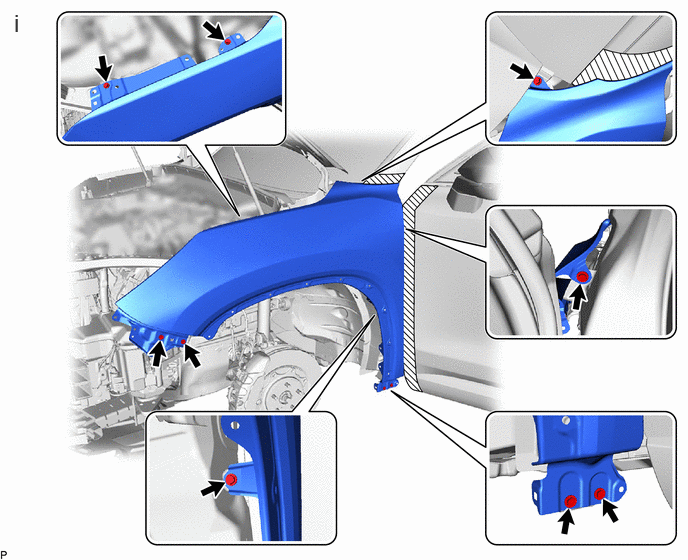

    2. GTY1237464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 9 bolts and front fender panel.
  13. REMOVE NO. 2 FRONT SIDE AIR GUIDE

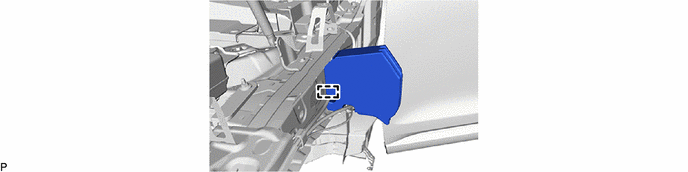

    1. GTY1234874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
