Removal [09/2023 - ]: Procedure

  1. REMOVE HEADLIGHT WASHER COVER LH

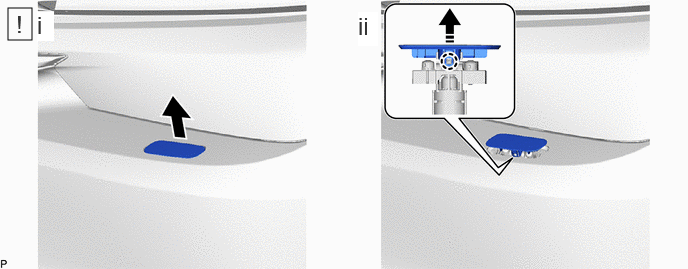

    1. GTY1237991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Pull out the headlight washer actuator sub-assembly LH.
      2. Disengage the claw and remove the headlight washer cover LH as shown in the illustration.
  2. REMOVE HEADLIGHT WASHER COVER RH
    1. Use the same procedure as for the LH side.
