Removal [09/2023 - ]: Procedure

Refer to PROCEDURE - Step 1 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 1 [12/2023 - ]

1. except Sport Package:

   Refer to REMOVAL [09/2023 - ]

2. for Sport Package:

   Refer to REMOVAL [09/2023 - ]

Refer to PROCEDURE - Step 57 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 58 [12/2023 - ]

Refer to PROCEDURE - Step 58 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 59 [12/2023 - ]

Refer to PROCEDURE - Step 2 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 2 [09/2023 - ]

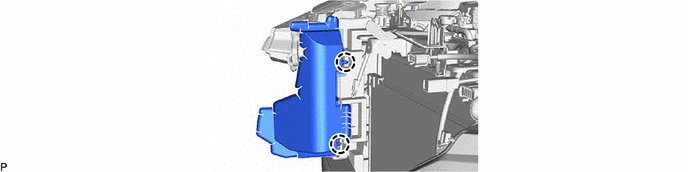

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

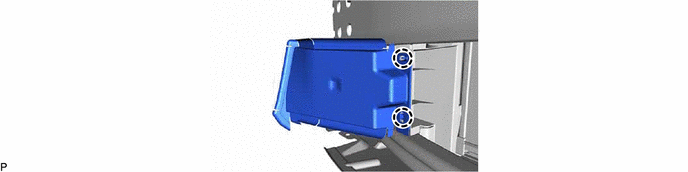

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 63

1. Use the same procedure as for the LH side.

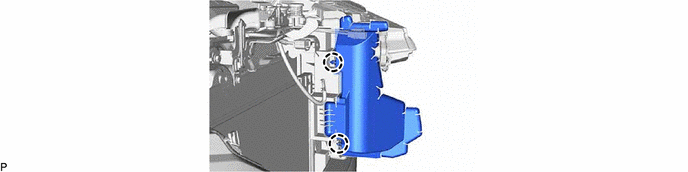

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

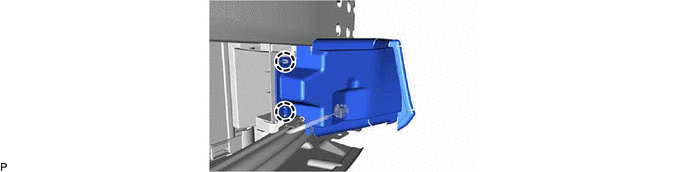

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 61 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 62 [12/2023 - ]

Refer to PROCEDURE - Step 60 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 61 [12/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

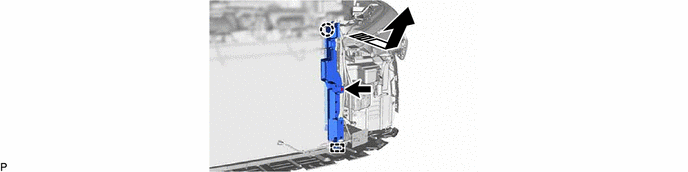

   Remove in this Direction

   -

   -

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

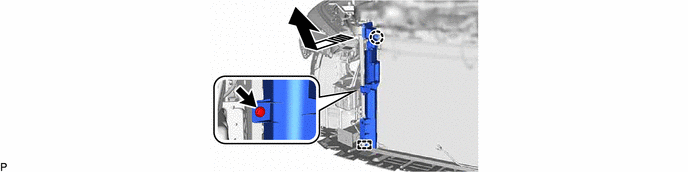

   Remove in this Direction

   -

   -

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

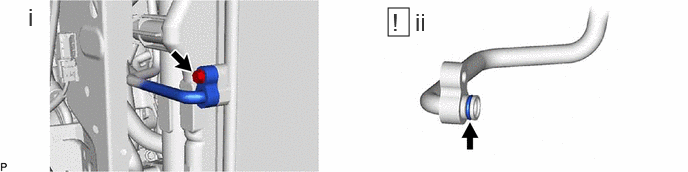

   1. Remove the bolt and disconnect the discharge hose sub-assembly.
   2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Air Conditioning Tube Assembly	*2	Cooler Condenser Assembly
   *3	Piping Clamp	-	-
   *a	Press In	-	-

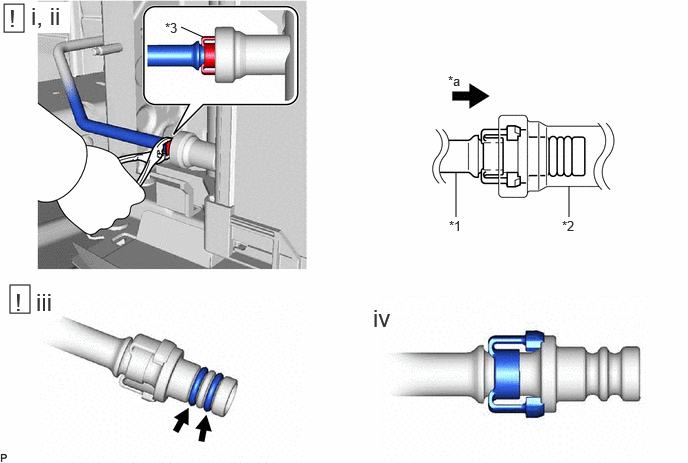

   1. While pressing the end of the air conditioning tube assembly into the end of the cooler condenser assembly, use pliers to squeeze together both sides of the piping clamp until it breaks apart.
      NOTE:

      • If any foreign matter is attached to the connecting parts, brush it off or use compressed air to remove it before disconnecting the parts.
      • Make sure that fragments of the piping clamp do not enter the piping.
   2. Disconnect the air conditioning tube assembly.
      NOTE:

      Remove any foreign matter from the connecting parts of the air conditioning tube assembly and cooler condenser assembly.

   3. Remove the 2 O-rings from the air conditioning tube assembly.
      NOTE:

      Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.

   4. Remove the piping clamp.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

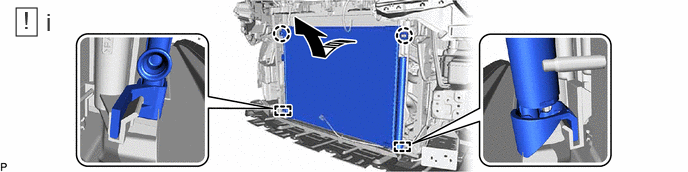

   1. Disengage the 2 claws and 2 guides, and remove the cooler condenser assembly as shown in the illustration.
      NOTE:

      Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
