Removal [09/2023 - ]: Procedure

Refer to PROCEDURE - Step 1

NOTE: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

HINT:

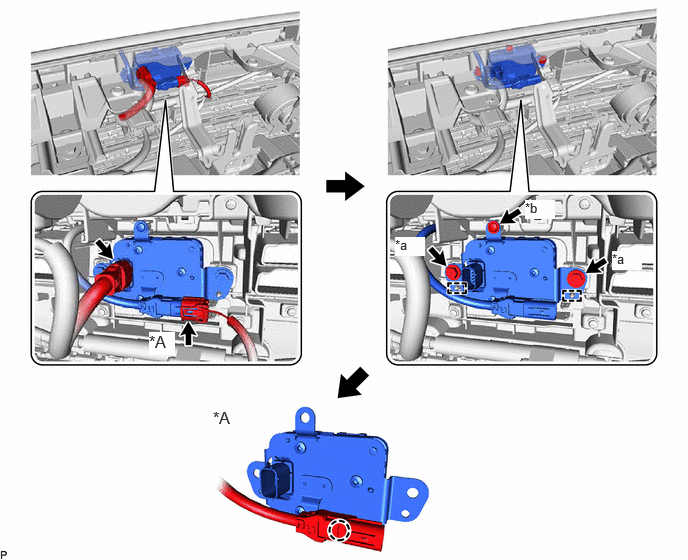

The illustrations are representative examples, and details may differ.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Wire Harness	-	-
   *a	Bolt	*b	Screw
