Removal [09/2023 - ]: Procedure

1. For Sport Package:

   Refer to REMOVAL [09/2023 - ]

2. Except Sport Package:

   Refer to REMOVAL [09/2023 - ]

1. Use the same procedure as for the LH side.

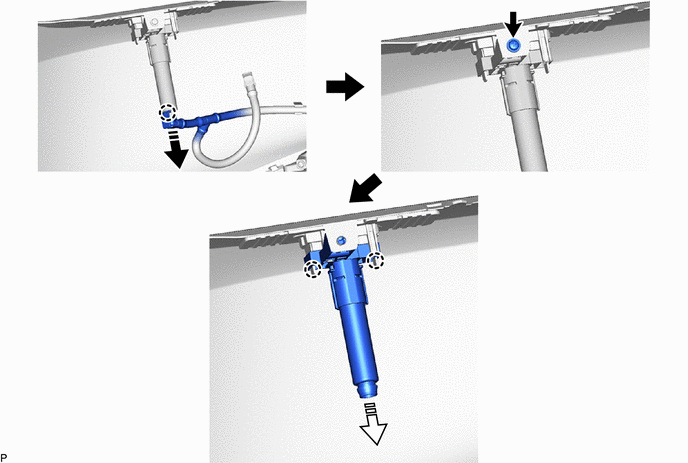

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disconnect in this Direction

   Remove in this Direction

1. Use the same procedure as for the LH side.

HINT:

Perform this procedure only when replacement of the No. 2 washer bracket is necessary.

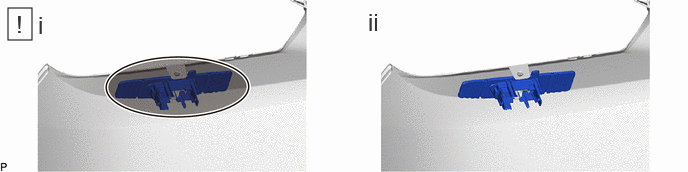

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Heated Part

   -

   -

   1. Heat the front bumper assembly and No. 2 washer bracket using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item	Temperature
      Front Bumper Assembly	20 to 30 °C (68 to 86 °F)
      No. 2 Washer Bracket

      WARNING:

      • Do not touch the heat light and heated parts.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *a	Heated Part
        *b	Heat Light

      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
   2. Remove the No. 2 washer bracket.

1. Use the same procedure as for the No. 2 washer bracket.
