Disassembly [10/2022 - ]: Procedure

  1. REMOVE SPARK PLUG
    Refer to PROCEDURE - Step 5
  2. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY
    Refer to PROCEDURE - Step 2
  3. REMOVE ENGINE OIL TEMPERATURE SENSOR
    Refer to PROCEDURE - Step 1
  4. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY
    Refer to PROCEDURE - Step 3
  5. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)
    Refer to PROCEDURE - Step 3
  6. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)
    Refer to PROCEDURE - Step 4
  7. REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING
    Refer to PROCEDURE - Step 5

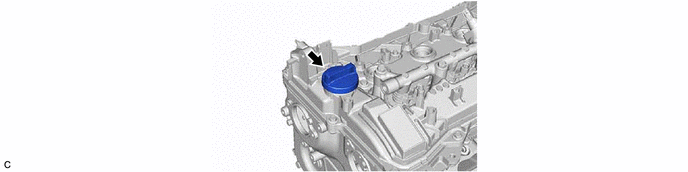

  8. REMOVE OIL FILLER CAP SUB-ASSEMBLY
    1. GTY1076134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE OIL FILLER CAP GASKET
    1. GTY1075897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 8

  11. REMOVE NO. 1 VACUUM PUMP O-RING

    Refer to PROCEDURE - Step 9

  12. REMOVE OIL COOLER ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE OIL COOLER GASKET

    Refer to PROCEDURE - Step 5

  14. REMOVE OIL COOLER PIPE GASKET

    Refer to PROCEDURE - Step 6

  15. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  16. REMOVE DIRECT FUEL INJECTOR ASSEMBLY
    Refer to PROCEDURE - Step 4
  17. REMOVE NOZZLE HOLDER CLAMP

    Refer to PROCEDURE - Step 5

  18. REMOVE NO. 3 FUEL INJECTOR BACK-UP RING
    Refer to PROCEDURE - Step 6
  19. REMOVE NO. 1 FUEL INJECTOR BACK-UP RING

    Refer to PROCEDURE - Step 7

  20. REMOVE C-RING

    Refer to PROCEDURE - Step 8

  21. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 9

  22. REMOVE FUEL INJECTOR SEAL
    Refer to PROCEDURE - Step 10

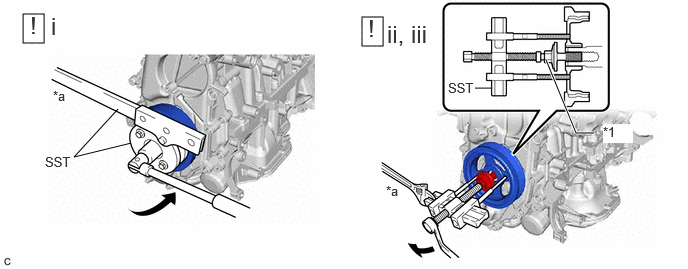

  23. REMOVE CRANKSHAFT PULLEY ASSEMBLY
    1. GTY1075276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Crankshaft Pulley Bolt - -
      *a Hold - -
      Turn - -
      1. Using SST, hold the crankshaft pulley assembly and loosen the crankshaft pulley bolt. Further loosen the crankshaft pulley bolt until 2 or 3 threads remain screwed into the crankshaft.
        • SST: 09213-54015
          1. 91651-60855
        • SST: 09330-00021
      2. Apply lubricant to the threads and end of SST.
        • SST: 09950-50013
          1. 09951-05010
          2. 09952-05010
          3. 09953-05020
          4. 09954-05070
          5. 09957-04010
      3. Using SST and the crankshaft pulley bolt, remove the crankshaft pulley assembly and crankshaft pulley bolt.
  24. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    Refer to PROCEDURE - Step 3
  25. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    Refer to PROCEDURE - Step 4

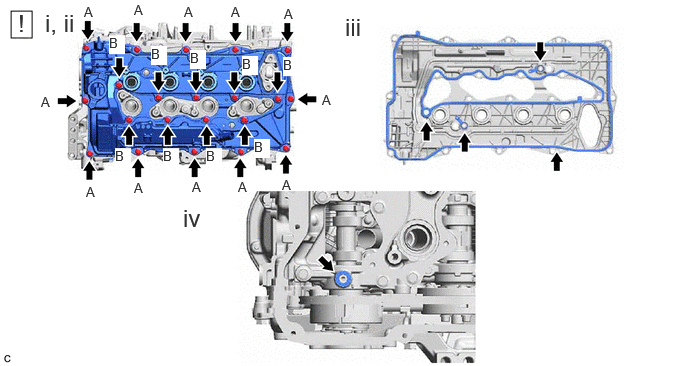

  26. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
    1. GTY1074975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 12 bolts (A).
      2. Remove the 9 bolts (B) and cylinder head cover sub-assembly from the camshaft housing sub-assembly.
      3. Remove the 4 gaskets from the cylinder head cover sub-assembly.
      4. Remove the gasket from the No. 1 camshaft bearing cap.

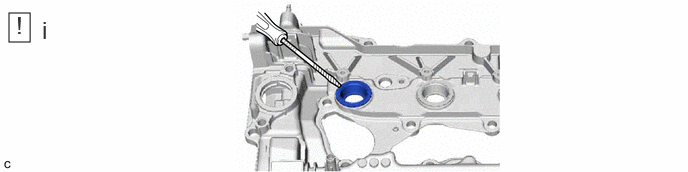

  27. REMOVE SPARK PLUG TUBE GASKET
    1. GTY1076087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, pry out the 4 spark plug tube gaskets from the cylinder head cover sub-assembly.
        NOTE:

        Be careful not to damage the cylinder head cover sub-assembly.

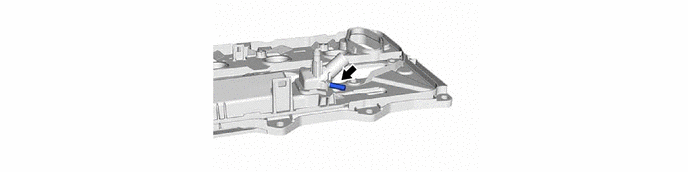

  28. REMOVE CYLINDER HEAD COVER PLUG (w/ Plug)
    1. GTY1131076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

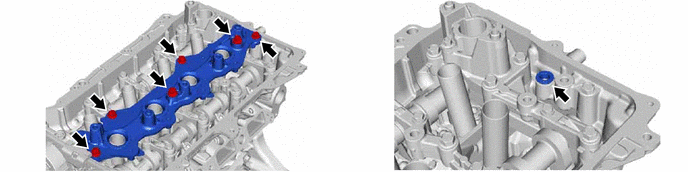

  29. REMOVE INJECTOR HOLDER SUB-ASSEMBLY
    1. GTY1075903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

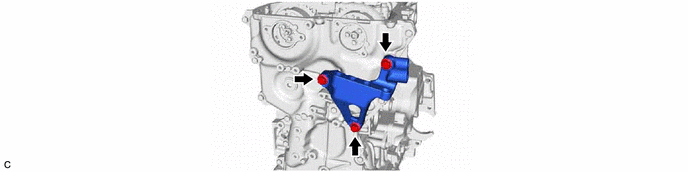

  30. REMOVE ENGINE MOUNTING BRACKET RH
    NOTE:

    When removing and installing or replacing the engine mounting bracket RH, remove the No. 2 timing chain cover assembly, reapply seal packing, then reassemble.
    1. GTY1076132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE STRAIGHT SCREW PLUG

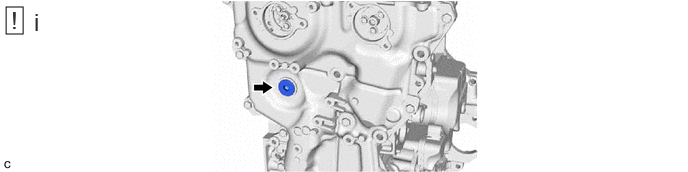

    1. GTY1076327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 10 mm hexagon socket wrench, remove the straight screw plug from the No. 2 timing chain cover assembly.
  32. REMOVE NO. 2 TIMING CHAIN COVER ASSEMBLY

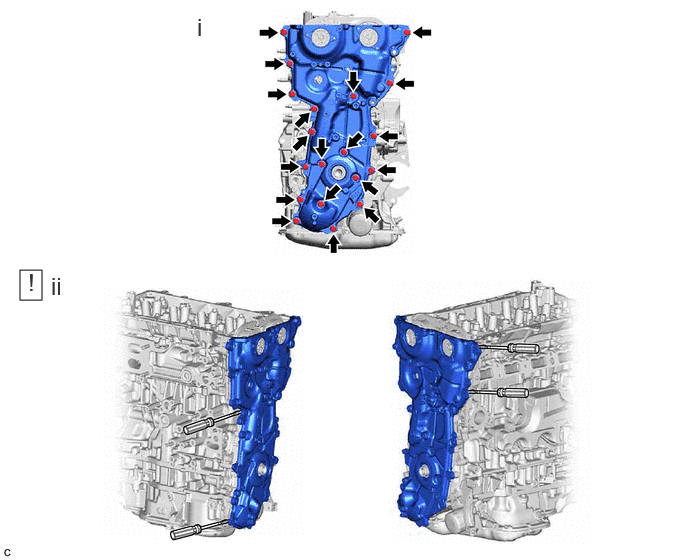

    1. GTY1077233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 19 bolts.
      2. Remove the No. 2 timing chain cover assembly from the timing chain cover assembly by prying the No. 2 timing chain cover assembly with a screwdriver with its tip wrapped with protective tape.
        NOTE:

        Be careful not to damage the contact surfaces of the No. 2 timing chain cover assembly and timing chain cover assembly.

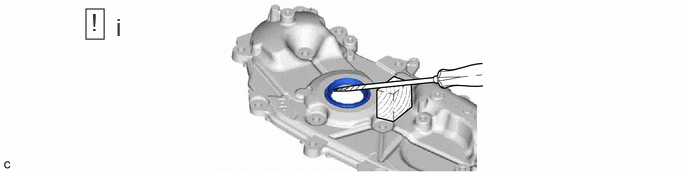

  33. REMOVE TIMING CHAIN CASE OIL SEAL
    1. GTY1076741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape and wooden block, pry out the timing chain case oil seal.
        NOTE:

        Do not damage the surface of the timing chain case oil seal press fit hole.

  34. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

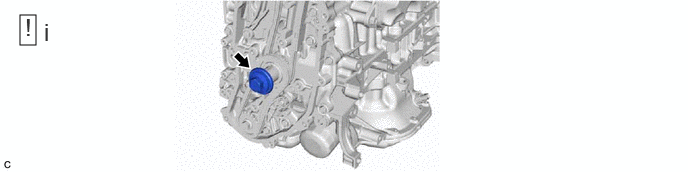

    1. GTY1077384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the crankshaft pulley bolt.

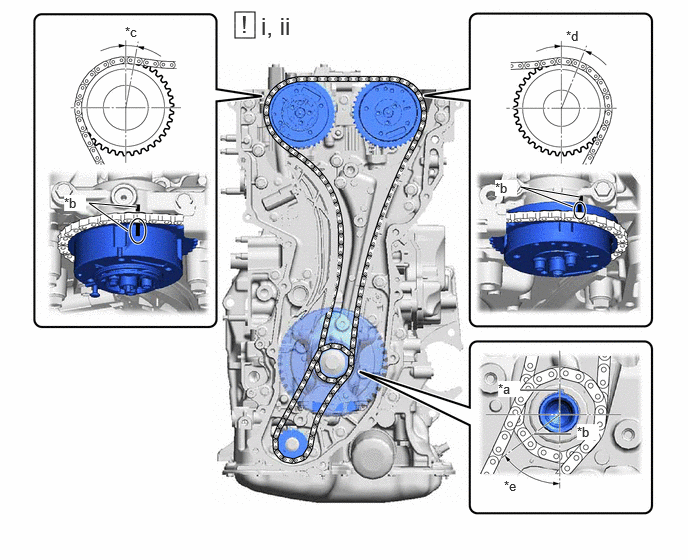

    2. GTY1076335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Crankshaft Timing Gear Key *b Timing Mark
      *c Approximately 10.6° *d Approximately 21.91°
      *e Approximately 53.28° - -
      1. Rotate the crankshaft clockwise and align the timing marks and crankshaft timing gear key as shown in the illustration.
      2. If the timing marks are not aligned, rotate the crankshaft clockwise and realign the timing marks.
    3. GTY1077169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a wrench, hold the hexagonal portion of the exhaust camshaft sub-assembly, remove the crankshaft pulley bolt.
        NOTE:

        Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly, fuel injector tube and spark plug tube with the wrench.

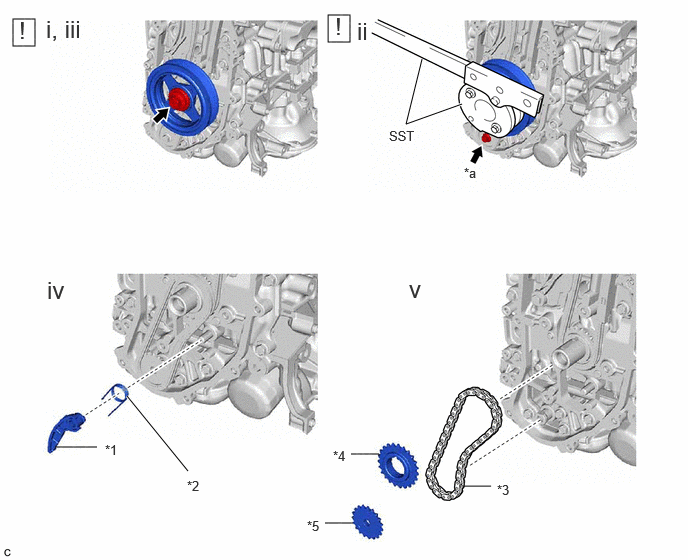

  35. REMOVE OIL PUMP DRIVE CHAIN SUB-ASSEMBLY
    1. GTY1076747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Chain Tensioner Plate *2 Chain Damper Spring
      *3 Oil Pump Drive Chain Sub-assembly *4 Oil Pump Drive Sprocket
      *5 Oil Pump Drive Shaft Sprocket - -
      *a Bolt - -
      1. Temporarily install the crankshaft pulley assembly with the crankshaft pulley bolt.
      2. Using SST, hold the crankshaft pulley assembly and remove the bolt.
        • SST: 09213-54015
          1. 91651-60855
        • SST: 09330-00021
      3. Remove SST, the crankshaft pulley bolt and crankshaft pulley assembly.
      4. Remove the chain tensioner plate and chain damper spring.
      5. Remove the oil pump drive sprocket, oil pump drive shaft sprocket and oil pump drive chain sub-assembly.

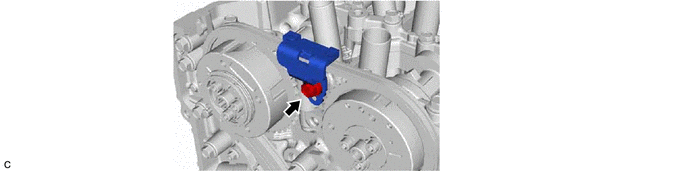

  36. REMOVE NO. 2 CHAIN VIBRATION DAMPER
    1. GTY1077329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

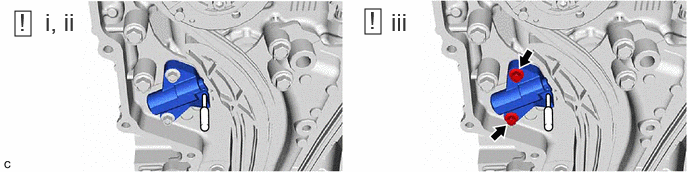

  37. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
    1. GTY1076439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Push the plunger into the No. 1 chain tensioner assembly.
      2. Insert a pin into the No. 1 chain tensioner assembly hole.
      3. Using an 8 mm socket wrench, remove the 2 bolts and No. 1 chain tensioner assembly.
        NOTE:
        • Make sure that the plunger, check ball assembly and spring do not come out.
        • If the No. 1 chain tensioner assembly comes apart, reinstall the parts as shown in the illustration.

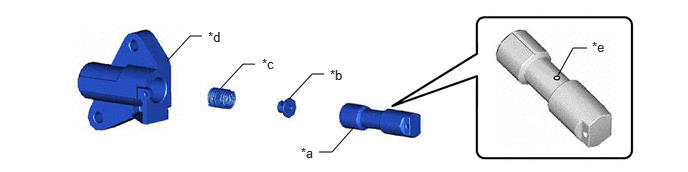

          GTY1077622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *a Plunger *b Check Ball Assembly
          *c Spring *d No. 1 Chain Tensioner Assembly Body
          *e Oil Hole - -
        • Make sure to inspect the chain sub-assembly when removing the No. 1 chain tensioner assembly. If the length exceeds the limit, replace the chain sub-assembly.

          Refer to PROCEDURE - Step 6

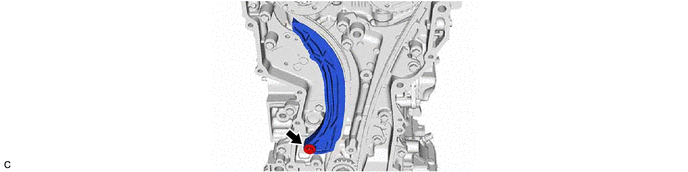

  38. REMOVE CHAIN TENSIONER SLIPPER
    1. GTY1077293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

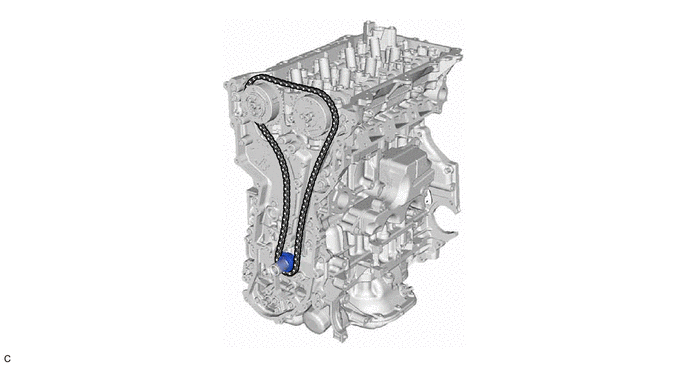

  39. REMOVE CHAIN SUB-ASSEMBLY
    1. GTY1077290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 1 CHAIN VIBRATION DAMPER

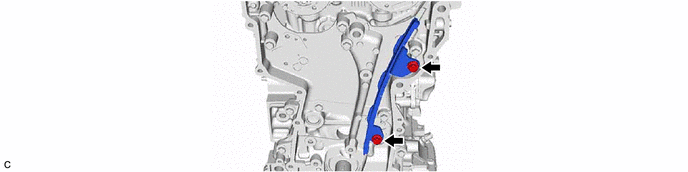

    1. GTY1077603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

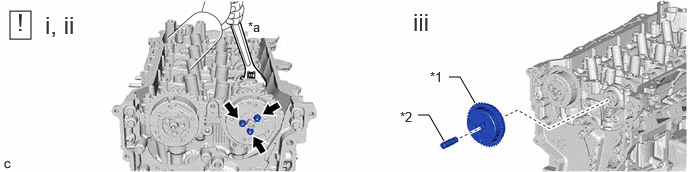

  41. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
    1. GTY1076841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Gear Assembly *2 Intake Camshaft Timing Gear Bolt Assembly
      *a Hold - -
      1. Using a wrench, hold the hexagonal portion of the intake camshaft sub-assembly.
        NOTE:
        • Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly, fuel injector tube and spark plug tube with the wrench.
        • Do not disassemble the camshaft timing gear assembly.
      2. Using a 5 mm hexagon socket wrench, remove the 3 bolts.
      3. Remove the camshaft timing gear assembly and intake camshaft timing gear bolt assembly.

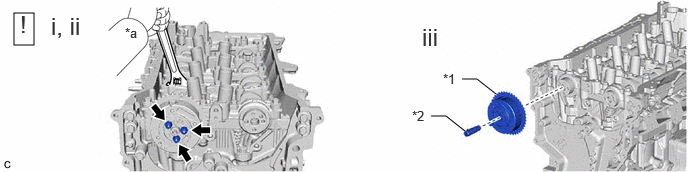

  42. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
    1. GTY1077389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Exhaust Gear Assembly *2 Exhaust Camshaft Timing Gear Bolt Assembly
      *a Hold - -
      1. Using a wrench, hold the hexagonal portion of the exhaust camshaft sub-assembly.
        NOTE:
        • Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly, fuel injector tube and spark plug tube with the wrench.
        • Do not disassemble the camshaft timing exhaust gear assembly.
      2. Using a 5 mm hexagon socket wrench, remove the 3 bolts.
      3. Remove the camshaft timing exhaust gear assembly and exhaust camshaft timing gear bolt assembly.
  43. REMOVE TIMING CHAIN COVER ASSEMBLY
    1. GTY1077087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 20 bolts.
      2. Remove the timing chain cover assembly by prying between the cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly, crankshaft bearing cap and stiffening crankcase assembly with a screwdriver with its tip wrapped with protective tape.
        NOTE:

        Be careful not to damage the contact surfaces of the cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly, crankshaft bearing cap, stiffening crankcase assembly and timing chain cover assembly.

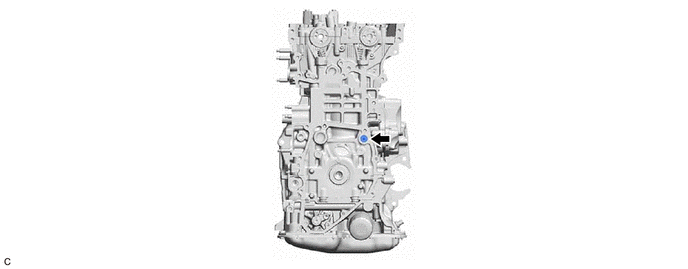

  44. REMOVE OIL NOZZLE VALVE SUB-ASSEMBLY
    1. GTY1077602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE FUEL PUMP LIFTER GUIDE
    1. GTY1076511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 2 bolts and fuel pump lifter guide from the No. 5 camshaft bearing cap.
  46. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

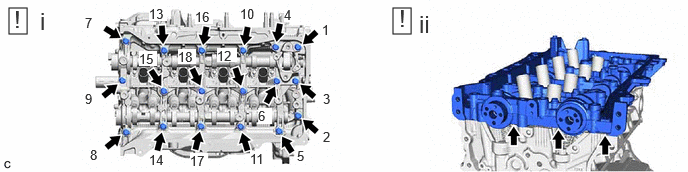

    1. Fig 1: Camshaft Housing Sub-Assembly Bolts Loosening Sequence
      GTY1076374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Uniformly loosen and remove the 18 bolts in the order shown in the illustration.
      2. Remove the camshaft housing sub-assembly by prying between the cylinder head sub-assembly and camshaft housing sub-assembly with a screwdriver with its tip wrapped with protective tape.
        NOTE:

        Be careful not to damage the contact surfaces of the cylinder head sub-assembly and camshaft housing sub-assembly.

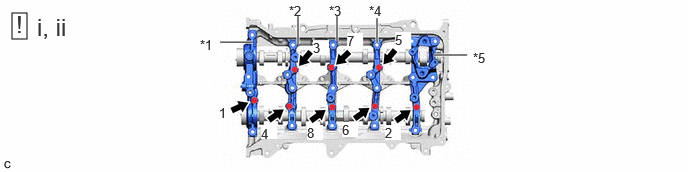

  47. REMOVE CAMSHAFT BEARING CAP
    1. GTY1077436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Camshaft Bearing Cap *2 No. 2 Camshaft Bearing Cap
      *3 No. 3 Camshaft Bearing Cap *4 No. 4 Camshaft Bearing Cap
      *5 No. 5 Camshaft Bearing Cap - -
      1. Remove the 8 bolts in the order shown in the illustration.
      2. Remove the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap, No. 3 camshaft bearing cap, No. 4 camshaft bearing cap and No. 5 camshaft bearing cap.
  48. REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 61

  49. REMOVE EXHAUST CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 62

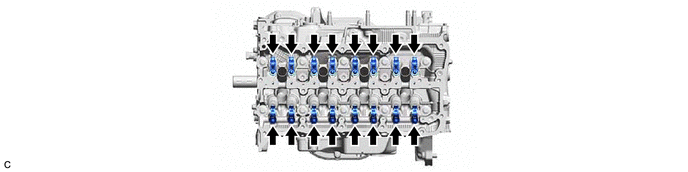

  50. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    1. GTY1076907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE VALVE LASH ADJUSTER ASSEMBLY
    1. GTY1076910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE VALVE STEM CAP

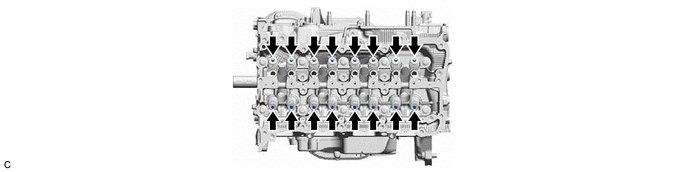

    1. GTY1076903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

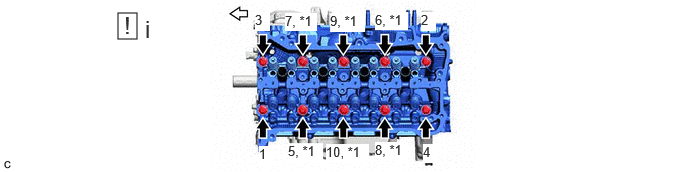

  53. REMOVE CYLINDER HEAD SUB-ASSEMBLY
    NOTE:
    • Be careful not to drop the plate washers into the cylinder head sub-assembly.
    • Warpage or cracking of the cylinder head sub-assembly may result from removing the cylinder head set bolts in the incorrect order.
    1. GTY1076909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Plate Washer - -
      Front of Engine - -
      1. Using a 12 mm socket wrench, uniformly loosen the 10 cylinder head set bolts in the order shown in the illustration. Remove the 10 cylinder head set bolts, 6 plate washers and cylinder head sub-assembly.
  54. REMOVE CYLINDER HEAD GASKET

    Refer to PROCEDURE - Step 34

  55. REMOVE OIL FILTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  56. REMOVE OIL FILTER UNION
    1. GTY1076470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 12 mm straight hexagon wrench, remove the oil filter union from the stiffening crankcase assembly.
  57. REMOVE OIL PAN DRAIN PLUG

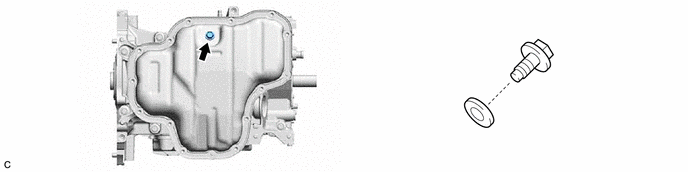

    1. GTY1076916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

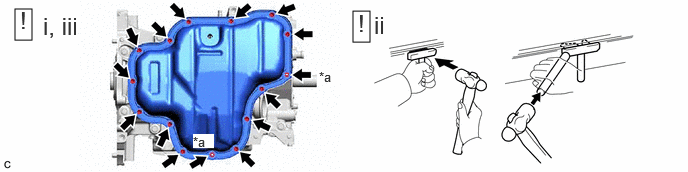

  58. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
    1. GTY1077275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut - -
      1. Remove the 13 bolts and 2 nuts.
      2. Insert the blade of an oil pan seal cutter between the No. 2 oil pan sub-assembly and stiffening crankcase assembly, cut through the applied sealer and remove the No. 2 oil pan sub-assembly.
        NOTE:
        • Be careful not to damage the contact surfaces of the stiffening crankcase assembly and No. 2 oil pan sub-assembly.
        • Be careful not to damage the No. 2 oil pan sub-assembly flange.
      3. Clean and inspect the bolts, nuts and stud bolts.
  59. REMOVE OIL STRAINER SUB-ASSEMBLY

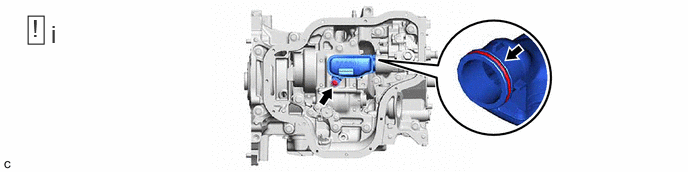

    1. GTY1076546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt, oil strainer sub-assembly and oil strainer gasket.
  60. REMOVE ENGINE OIL LEVEL SENSOR
    Refer to PROCEDURE - Step 4

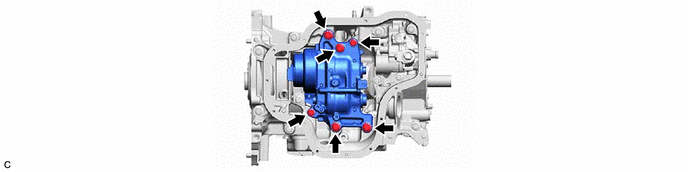

  61. REMOVE ENGINE BALANCER ASSEMBLY
    NOTE:

    Do not disassemble the engine balancer assembly.
    1. GTY1077529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE OIL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 6

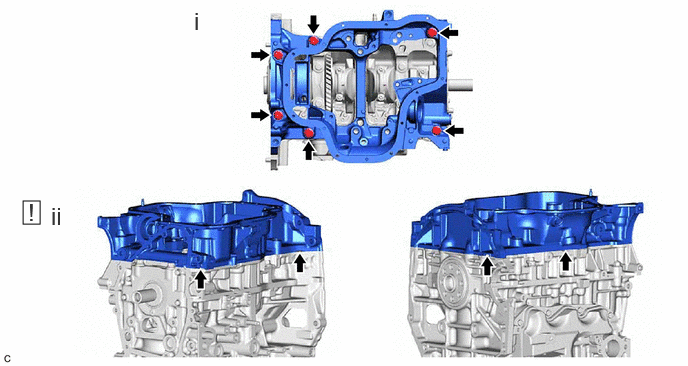

  63. REMOVE STIFFENING CRANKCASE ASSEMBLY
    1. GTY1076183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 bolts.
      2. Remove the stiffening crankcase assembly by prying between the stiffening crankcase assembly and crankshaft bearing cap with a screwdriver with its tip wrapped with protective tape.
        NOTE:

        Be careful not to damage the contact surfaces of the crankshaft bearing cap and stiffening crankcase assembly.

  64. REMOVE STRAIGHT SCREW PLUG
    1. GTY1077523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 10 mm hexagon socket wrench, remove the 3 straight screw plugs and 3 gaskets from the stiffening crankcase assembly.
  65. REMOVE REAR ENGINE OIL SEAL
    Refer to PROCEDURE - Step 4
  66. REMOVE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

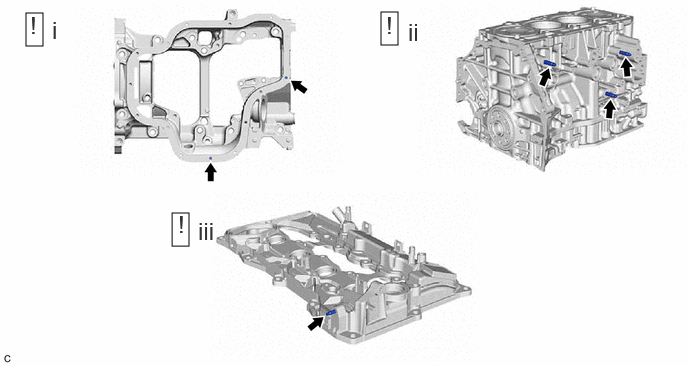

    1. GTY1077397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the stiffening crankcase assembly.
      2. Using an E10 "TORX" socket wrench, remove the 3 stud bolts from the cylinder block sub-assembly.
      3. Using an E6 "TORX" socket wrench, remove the stud bolt from the cylinder head cover sub-assembly.
  67. REMOVE RING PIN
    NOTE:

    It is not necessary to remove the ring pins unless they are being replaced.

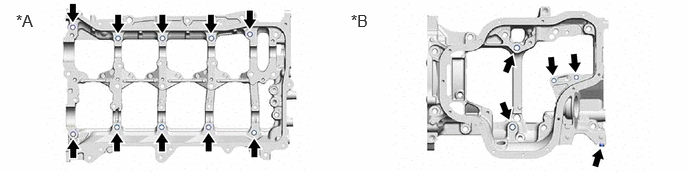

    1. GTY1079082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Camshaft Housing Sub-assembly Side *B Stiffening Crankcase Assembly Side
  68. REMOVE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pins unless they are being replaced.

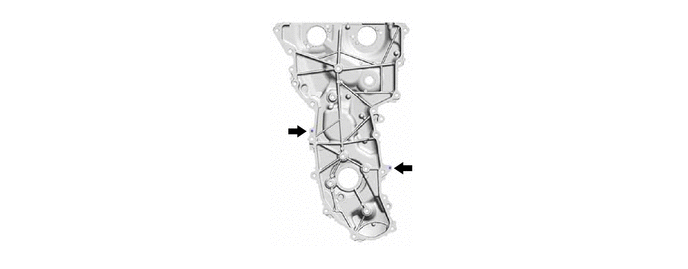

    1. GTY1079412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
