Removal [10/2022 - ]: Procedure

for 1Motor-HEV Model:

Refer to PROCEDURE - Step 12

for Gasoline Model:

Refer to PROCEDURE - Step 14

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

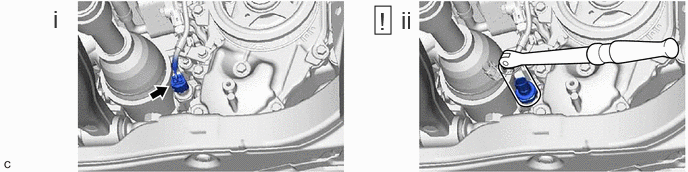

   1. Disconnect the oil pressure sender gauge assembly connector.
   2. Using a 27 mm deep socket wrench, remove the oil pressure sender gauge assembly.
      NOTE:

      If the oil pressure sender gauge assembly is dropped or subjected to a strong impact, replace it with a new one.
