Removal [10/2022 - ]: Procedure

for 1Motor-HEV Model:

Refer to PROCEDURE - Step 12

for Gasoline Model:

Refer to PROCEDURE - Step 14

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

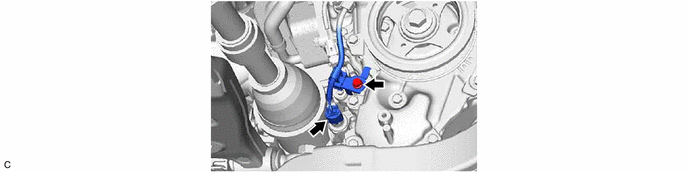

   1. Disconnect the oil pressure control valve assembly connector.
   2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the timing chain cover assembly.
