Removal [10/2022 - ]: Procedure

  1. REMOVE CONVERTER WITH CATALYST ASSEMBLY

    for 1Motor-HEV Model:

    Refer to REMOVAL [10/2022 - ]

    for Gasoline Model:

    Refer to REMOVAL [10/2022 - ]

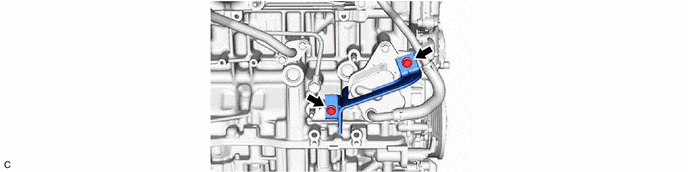

  2. REMOVE EXHAUST PIPE HEAT INSULATOR
    1. GTY1075126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

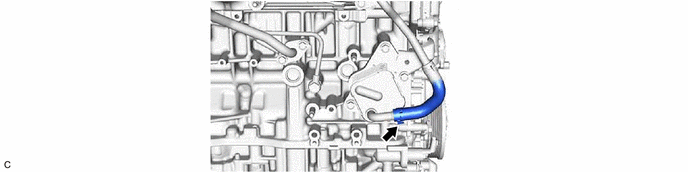

  3. DISCONNECT WATER BY-PASS HOSE
    1. GTY1075128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

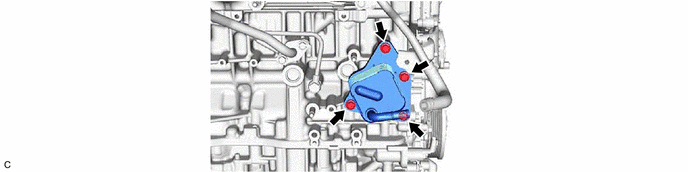

  4. REMOVE OIL COOLER ASSEMBLY
    1. GTY1075130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE OIL COOLER GASKET
    1. GTY1075132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OIL COOLER PIPE GASKET
    1. GTY1075803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
