Removal [10/2022 - ]: Procedure

REMOVE TIMING CHAIN COVER ASSEMBLY
- for 1Motor-HEV Model:
  Refer to REMOVAL [10/2022 - ]
- for Gasoline Model:
  Refer to REMOVAL [10/2022 - ]

REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 58
for Gasoline Model:
Refer to PROCEDURE - Step 58

REMOVE OIL STRAINER SUB-ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 59
for Gasoline Model:
Refer to PROCEDURE - Step 59

REMOVE ENGINE OIL LEVEL SENSOR

See step 4

REMOVE ENGINE BALANCER ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 61
for Gasoline Model:
Refer to PROCEDURE - Step 61

REMOVE OIL PUMP ASSEMBLY

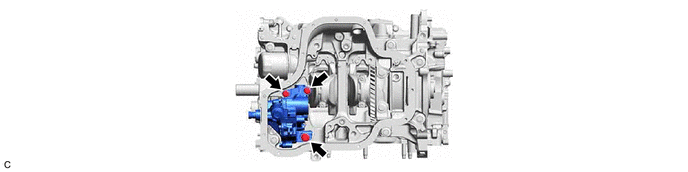

GTY1077228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE STIFFENING CRANKCASE ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 63
for Gasoline Model:
Refer to PROCEDURE - Step 63
