Removal [10/2022 - ]: Procedure

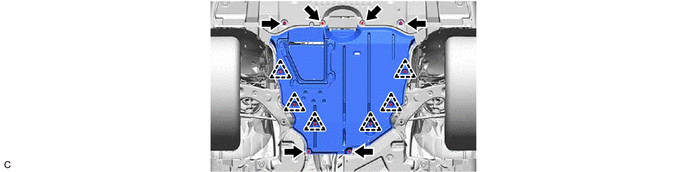

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
    1. GTY1130644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
    for 1Motor-HEV Model:
    Refer to PROCEDURE - Step 58
    for Gasoline Model:
    Refer to PROCEDURE - Step 58

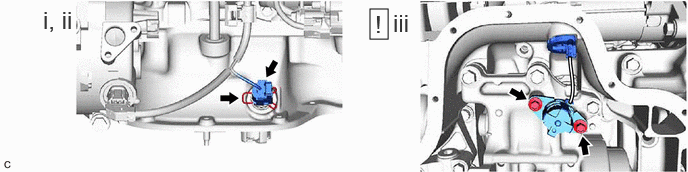

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. GTY1075711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine oil level sensor connector.
      2. Remove the clip from the engine oil level sensor.
      3. Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from engine balancer assembly.
