Disassembly [12/2023 - ]: Procedure

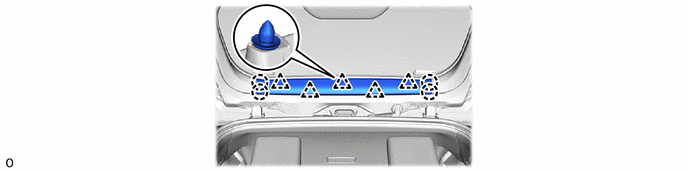

  1. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)
    1. GTY1215846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

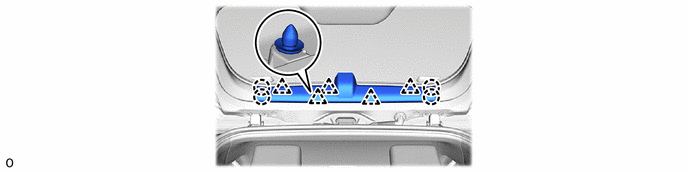

  2. REMOVE BACK DOOR CENTER GARNISH (w/ Digital Inner Mirror)
    1. GTY1215845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

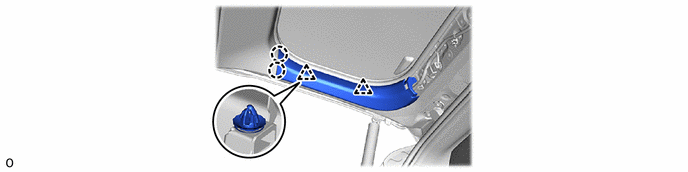

  3. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1219149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  5. REMOVE BACK DOOR INSIDE HANDLE
    1. GTY1214665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using the moulding remover, detach the craw and guide to remove the back door inside handle.
      2. Disconnect the 2 connectors.
  6. REMOVE BACK DOOR FINISH COVER
    1. GTY1216505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using the moulding remover, detach the craw and guide to remove the back door finish cover.

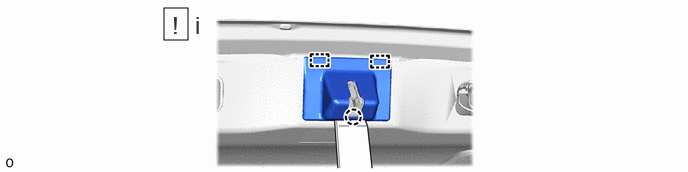

  7. REMOVE BACK DOOR LOCK COVER
    1. GTY1217087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using the moulding remover, detach the craw and guide to remove the back door lock cover.
  8. REMOVE BACK DOOR LOCK COVER
    1. GTY1215841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

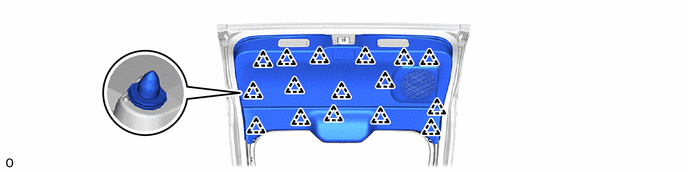

  9. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. GTY1219148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE BACK DOOR SERVICE HOLE COVER
    1. GTY1215840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    Refer to PROCEDURE - Step 8
  12. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    Refer to PROCEDURE - Step 9
  13. REMOVE NO. 3 SPEAKER WITH BOX ASSEMBLY
    Refer to PROCEDURE - Step 11

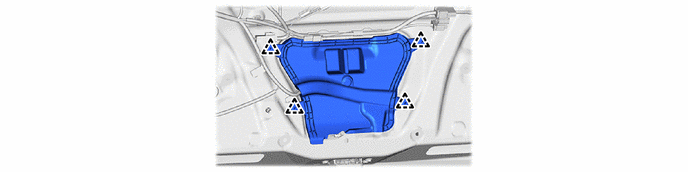

  14. REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER
    1. GTY1215839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 11

  16. REMOVE MULTIPLEX NETWORK DOOR ECU

    See step  10

  17. REMOVE REAR INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  18. REMOVE BACK DOOR GARNISH (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 3

  19. REMOVE REAR WIPER SHAFT COVER

    Refer to PROCEDURE - Step 10

  20. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 11

  21. REMOVE REAR WIPER LINK CAP

    Refer to PROCEDURE - Step 12

  22. REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT
    Refer to PROCEDURE - Step 13
  23. REMOVE REAR WIPER LINK ASSEMBLY
    Refer to PROCEDURE - Step 14
  24. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 15

  25. REMOVE BACK WINDOW LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. REMOVE POWER BACK DOOR UNIT ASSEMBLY LH
    See step  10
  27. REMOVE POWER BACK DOOR UNIT ASSEMBLY RH
    1. Use the same procedure described for the LH side.

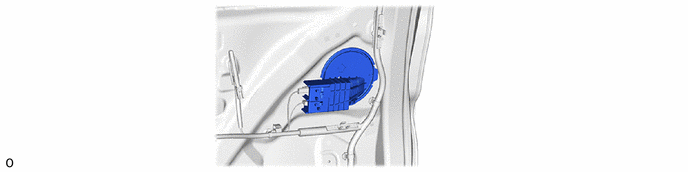

  28. REMOVE BACK DOOR NO. 4 SERVICE HOLE COVER
    1. GTY1215792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE BACK DOOR NO. 3 SERVICE HOLE COVER
    1. Use the same procedure described for the back door No. 4 service hole cover.
  30. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  3

  31. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  32. REMOVE BACK DOOR LOWER DAMPER STAY BRACKET LH

    See step  14

  33. REMOVE BACK DOOR LOWER DAMPER STAY BRACKET RH
    1. Use the same procedure described for the LH side.
  34. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH

    See step  13

  35. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH
    1. Use the same procedure described for the LH side.
  36. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  37. REMOVE BACK WINDOW STAY ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  38. REMOVE BACK WINDOW STAY ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  39. REMOVE BACK DOOR STAY BOLT

    Refer to PROCEDURE - Step 2

  40. REMOVE BACK DOOR GLASS
    Refer to PROCEDURE - Step 9
  41. REMOVE BACK DOOR NO. 2 WEATHERSTRIP
    1. GTY1219137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

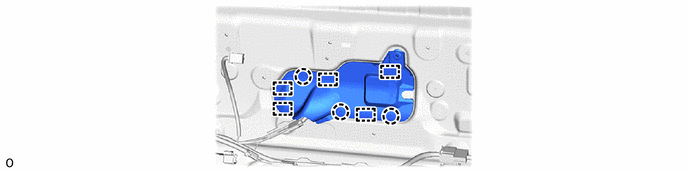

  42. REMOVE BACK DOOR NO. 1 SERVICE HOLE COVER
    1. GTY1215787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE BACK DOOR SIDE GARNISH LH
    Refer to PROCEDURE - Step 11
  44. REMOVE BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 12

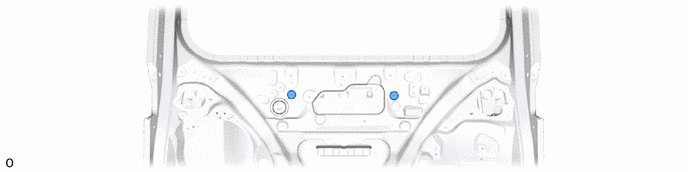

  45. REMOVE HOLE PLUG
    1. GTY1215782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

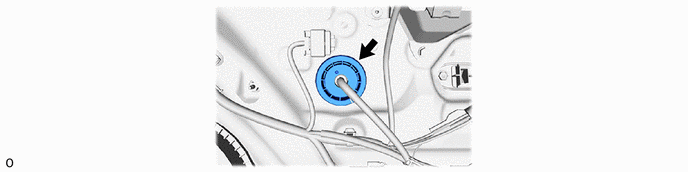

  46. REMOVE BACK DOOR NO. 5 SERVICE HOLE COVER
    1. GTY1218338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE REAR LICENSE LIGHT COVER
    Refer to PROCEDURE - Step 8
  48. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 9
  49. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
    Refer to PROCEDURE - Step 3
  50. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

  51. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  52. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    Refer to PROCEDURE - Step 2
  53. REMOVE CUSHION
    1. GTY1215784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure for the others.

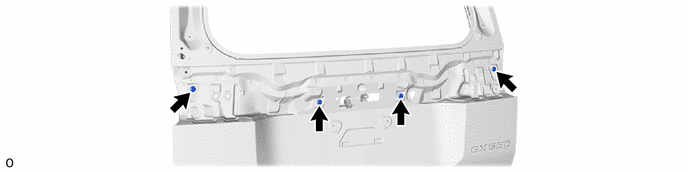

  54. REMOVE HOLE PLUG
    1. GTY1219136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

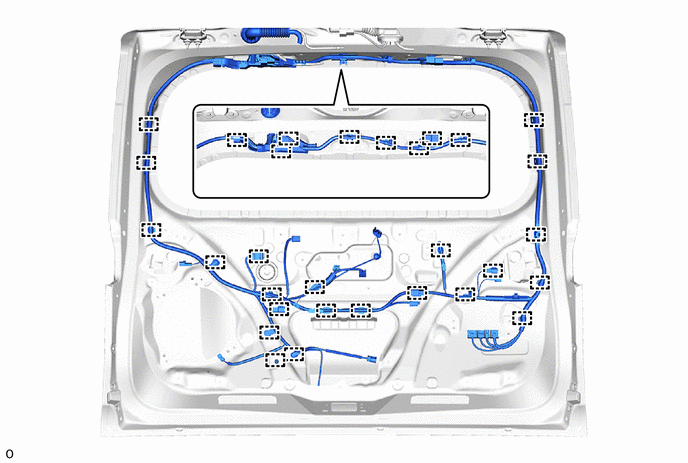

  55. REMOVE NO. 1 BACK DOOR WIRE

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1215783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

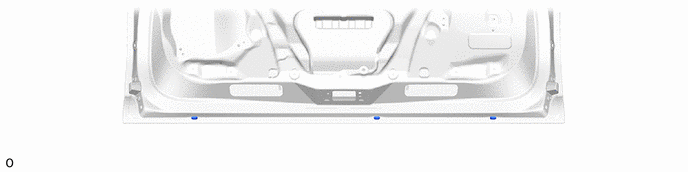

  56. REMOVE DOOR DUST PROOF SEAL
    1. GTY1215781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE BACK DOOR SIDE MALE STOPPER LH
    1. GTY1215780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE BACK DOOR SIDE MALE STOPPER RH
    1. Use the same procedure described for the LH side.
