Removal [12/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR CENTER GARNISH (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 3

  4. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  5. REMOVE BACK DOOR INSIDE HANDLE
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR FINISH COVER
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 7
  8. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 8

  9. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER

    Refer to PROCEDURE - Step 14

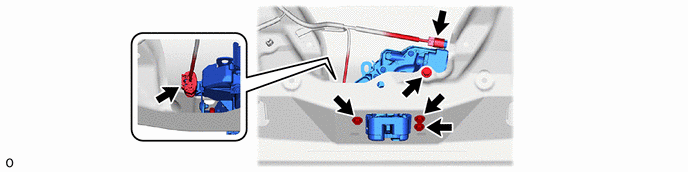

  11. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    1. GTY1215794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
