Removal [12/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH
  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 3

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  4. REMOVE BACK DOOR FINISH COVER
    Refer to PROCEDURE - Step 6
  5. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 7
  6. REMOVE BACK DOOR INSIDE HANDLE
    Refer to PROCEDURE - Step 5
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE NO. 2 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    NOTE:

    Do not touch the cone of the rear No. 3 speaker assembly.
    1. GTY1219486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    1. Use the seme procedure for the No. 2 speaker with box assembly.
  10. REMOVE REAR SPEAKER ASSEMBLY (for 21 Speakers)
    NOTE:

    Do not touch the cone of the rear No. 3 speaker assembly.
    1. GTY1217508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the seme procedure for the opposite side.
  11. REMOVE NO. 3 SPEAKER WITH BOX ASSEMBLY
    NOTE:

    Do not touch the cone of the speaker with bracket assembly.

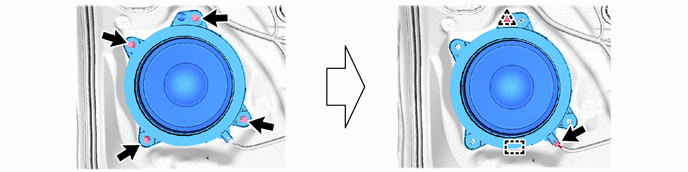

    1. GTY1217503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
