Removal [12/2023 - ]: Procedure

REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)
Refer to PROCEDURE - Step 1
REMOVE BACK DOOR CENTER GARNISH (w/ Digital Inner Mirror)
Refer to PROCEDURE - Step 2
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 3
REMOVE BACK DOOR SIDE GARNISH RH
1. Use the same procedure described for the LH side.
REMOVE BACK DOOR INSIDE HANDLE

Refer to PROCEDURE - Step 5
REMOVE BACK DOOR FINISH COVER

Refer to PROCEDURE - Step 6
REMOVE BACK DOOR LOCK COVER

Refer to PROCEDURE - Step 7
REMOVE BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 8
REMOVE BACK DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 9

REMOVE REAR WIPER SHAFT COVER

GTY1217672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fastener

-

-

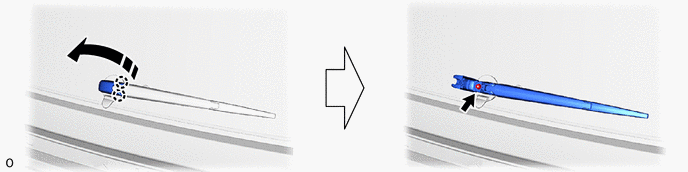

REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

GTY1216242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

REMOVE REAR WIPER LINK CAP

GTY1214112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT

GTY1212910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 23 mm deep socket wrench, remove the nut and rear wiper link pivot with washer packing nut.

REMOVE REAR WIPER LINK ASSEMBLY

HINT:
When removing the rear wiper link assembly, open the back door glass.

When reusing the rear wiper link assembly:

GTY1218228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Matchmarks

-

-

Place matchmarks over the rear wiper link assembly and around the rear wiper link assembly at the locations indicated in the illustration.

GTY1217611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts and rear wiper link assembly.
NOTE:
Be careful not to scratch the back door glass.

REMOVE REAR WIPER MOTOR ASSEMBLY

GTY1214105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
