Removal [12/2023 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE REAR WIPER SHAFT COVER

    Refer to PROCEDURE - Step 10

  3. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 11

  4. REMOVE REAR WIPER LINK CAP

    Refer to PROCEDURE - Step 12

  5. REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT
    Refer to PROCEDURE - Step 13
  6. REMOVE REAR WIPER LINK ASSEMBLY
    Refer to PROCEDURE - Step 14
  7. REMOVE BACK WINDOW STAY ASSEMBLY LH
    See step  1
  8. REMOVE BACK WINDOW STAY ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  9. REMOVE BACK DOOR GLASS
    1. GTY1219508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the outer surface of the vehicle body to prevent scratches.

        HINT:

        When separating the back door glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

    2. When reusing the back door glass:
      GTY1216447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmarks - -
      1. Place matchmarks over the glass and vehicle body at the locations indicated in the illustration.
    3. GTY1214443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 nuts and back door glass.
        NOTE:

        Be careful not to drop the back door glass.

  10. REMOVE NO. 3 BACK DOOR WIRE HARNESS GUIDE
    1. GTY1213153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Detach the clamp.
      2. Using a scraper, remove the back door No. 3 wire harness guide.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door No. 3 wire harness guide with a new back door No. 3 wire harness guide.
  11. REMOVE BACK DOOR SEAL
    1. GTY1218211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back door seal.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door seal with a new back door seal.
  12. REMOVE BACK DOOR SEAL
    1. Use the same procedure described for the back door seal.
  13. REMOVE BACK WINDOW LOCK STRIKER ASSEMBLY
    1. GTY1219061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  14. REMOVE BACK DOOR GLASS UPPER GUIDE BRACKET LH
    1. GTY1215435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  15. REMOVE BACK DOOR GLASS UPPER GUIDE BRACKET RH
    1. Use the same procedure described for the LH side.
  16. REMOVE BACK DOOR WINDOW HINGE RETAINER
    1. GTY1214221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

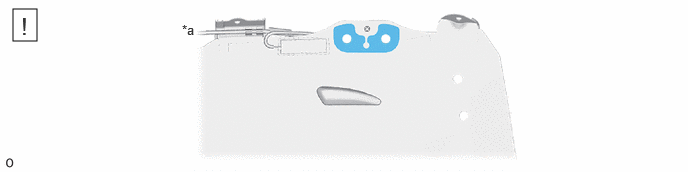

  17. REMOVE BACK DOOR HINGE PLATE LH
    1. GTY1212211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back door hinge plate LH.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door hinge plate LH with a new back door hinge plate LH.
  18. REMOVE BACK DOOR HINGE PLATE RH
    1. Use the same procedure described for the LH side.

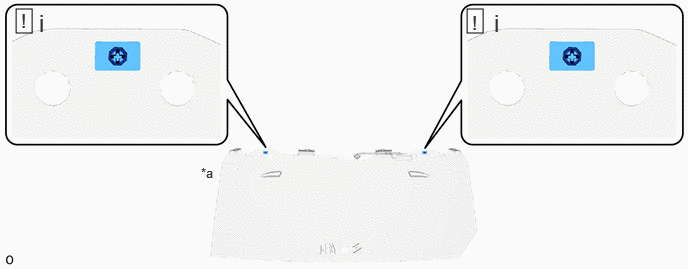

  19. REMOVE NO. 1 BACK WINDOW GLASS SPACER
    1. GTY1217941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the No. 1 back door glass spacer.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed No. 1 back door glass spacer with a new No. 1 back door glass spacer.
  20. REMOVE BACK WINDOW OUTSIDE MOULDING
    1. GTY1216125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back window outside moulding.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back window outside moulding with a new back window outside moulding.
  21. REMOVE BACK WINDOW OUTSIDE MOULDING
    1. Use the same procedure described for the back window outside moulding.

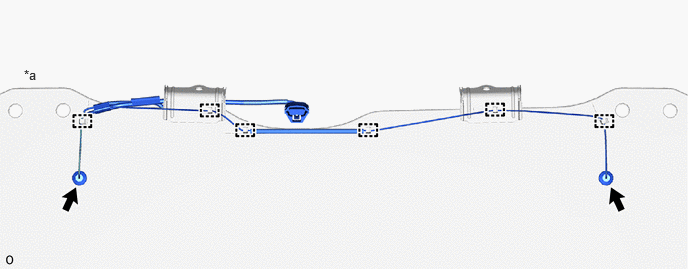

  22. REMOVE NO. 1 REAR WINDOW WIRE
    1. GTY1214649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  23. REMOVE NO. 2 BACK DOOR WIRE HARNESS GUIDE
    1. GTY1212881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the No. 2 back door wire harness guide.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed No. 2 back door wire harness guide with a new No. 2 back door wire harness guide
  24. REMOVE NO. 1 BACK DOOR WIRE HARNESS GUIDE
    1. GTY1218146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the No. 1 back door wire harness guide.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed No. 1 back door wire harness guide with a new No. 1 back door wire harness guide
