Removal [12/2023 - ]: Procedure

Refer to REMOVAL [12/2023 - ]

Refer to PROCEDURE - Step 28

1. Use the same procedure described for the back door No. 4 service hole cover.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 45

Refer to PROCEDURE - Step 42

Refer to PROCEDURE - Step 46

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   -

   -

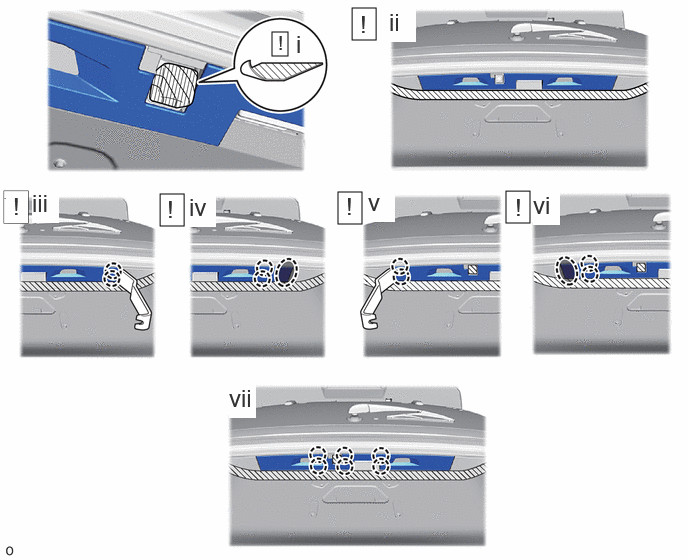

   1. Apply protective tape around the rear television camera.
   2. Apply protective tape to the body.
   3. Using a moulding remover B, detach the claw.
   4. Place your hand at the position shown in the illustration and pull the rear license light cover to detach the claw.
   5. Using a moulding remover B, detach the claw.
   6. Place your hand at the position shown in the illustration and pull the rear license light cover to detach the claw.
   7. Detach the claw and remove the rear license light cover.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

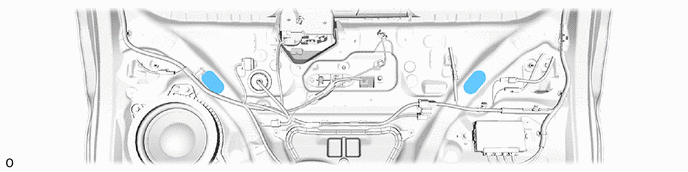

   1. Apply protective tape around the rear light assembly.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

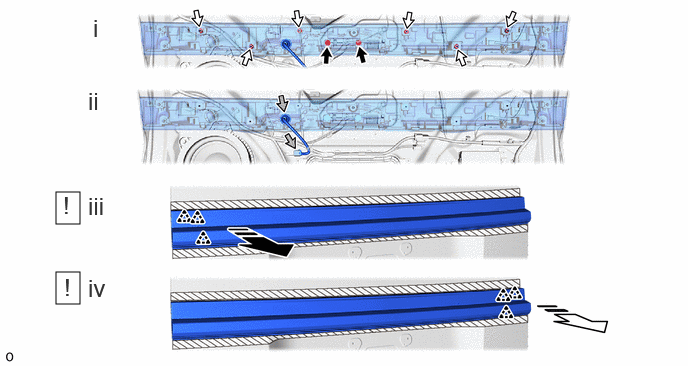

   	Remove in this Direction (1)		Remove in this Direction (2)
   	Bolt		Nut
   	Connector		Grommet

   1. Remove the 2 bolts and 6 nuts.
   2. Disconnect the connector and remove the grommet.
   3. Detach the clip and pull out the rear light assembly in the direction (1) as shown in the illustration.
   4. Detach the clip and remove the rear light assembly in the direction (2) as shown in the illustration.
