Removal [12/2023 - ]: Procedure

  1. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE BACK DOOR NO. 1 SERVICE HOLE COVER

    Refer to PROCEDURE - Step 42

  3. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

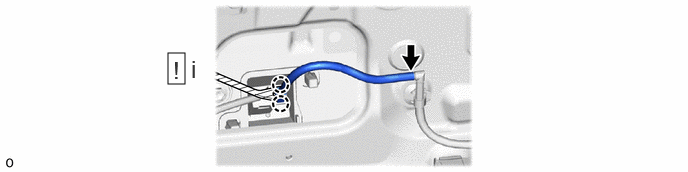

    1. GTY1218274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a clip remover with its tip wrapped with protective tape, detach the claw and remove the No. 1 camera cleaner nozzle assembly.
