Disassembly [12/2023 - ]: Procedure

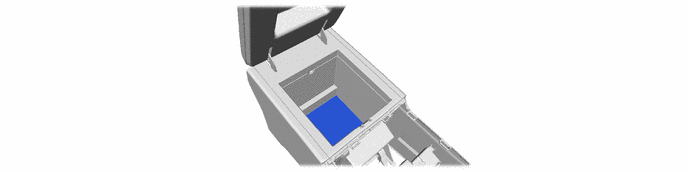

- REMOVE CONSOLE BOX CARPET
- REMOVE ARMREST ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE CONSOLE BOX WIRE
HINT:
The illustrations are representative examples, and details may differ.
- REMOVE USB CHARGER SOCKET
Refer to PROCEDURE - Step 5
- REMOVE STEREO JACK ADAPTER ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY
Refer to PROCEDURE - Step 6 - REMOVE CIGARETTE LIGHTER INDICATOR LENS
Refer to PROCEDURE - Step 7
- REMOVE NO. 4 COMBINATION SWITCH ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE SHIFT POSITION INDICATOR
Refer to PROCEDURE - Step 3

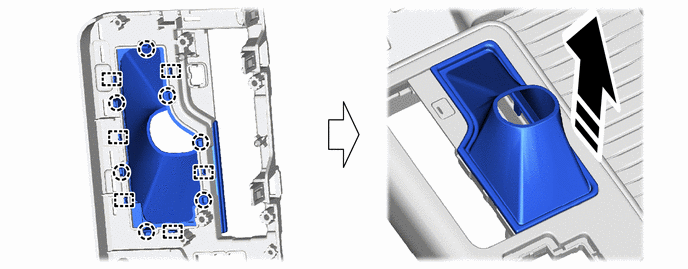

- REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY
- REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)
Refer to PROCEDURE - Step 5
- REMOVE CONSOLE BOX POCKET
- REMOVE SHIFT LOCK RELEASE BUTTON COVER
Refer to PROCEDURE - Step 1 - REMOVE TRANSFER POSITION SWITCH
Refer to PROCEDURE - Step 3
- REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/ Rear Air Conditioning System)
Refer to PROCEDURE - Step 2
- REMOVE REFRESHING SEAT SWITCH (w/ Rear Seat Heater Switch)
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 USB CHARGER SOCKET
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
Refer to PROCEDURE - Step 4
