Removal [12/2023 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
  2. REMOVE NO. 2 USB CHARGER SOCKET
    1. w/ Rear Seat Heater Switch:

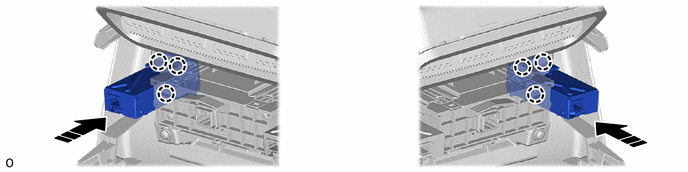

      GTY1216002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
    2. w/o Rear Seat Heater Switch:

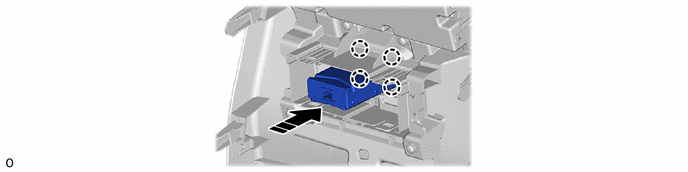

      GTY1217713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
