Removal [12/2023 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  2. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    Refer to PROCEDURE - Step 4
  3. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

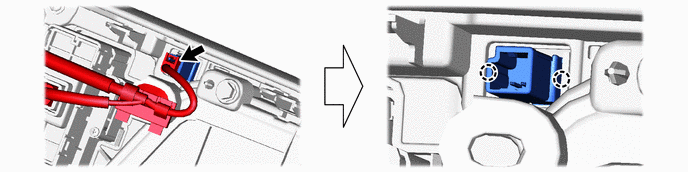

    1. GTY1212374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
