Removal [12/2023 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to REMOVAL [12/2023 - ]
- REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
- w/o Cool Box:
Refer to PROCEDURE - Step 5
- w/ Cool Box:
Refer to PROCEDURE - Step 7
- w/o Cool Box:

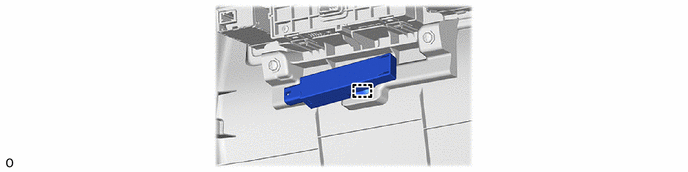

- REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
