Home >> Lexus >> 2024 >> GX 550 Overtrail >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System (Int) - Service Information >> Console Box Light >> Removal [12/2023 - ] >> Procedure

Removal [12/2023 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
  2. REMOVE ARMREST ASSEMBLY

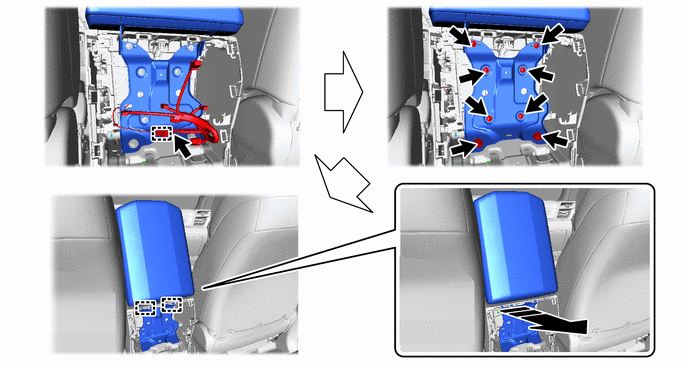

    1. GTY1215345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  3. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

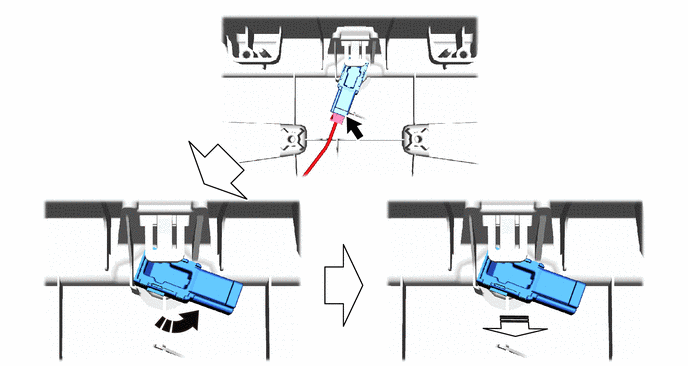

    1. GTY1212189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
