Removal [12/2023 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  2. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
    Refer to PROCEDURE - Step 2
  3. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION
    1. Use the same procedure described for the No. 2 instrument panel finish panel cushion.
  4. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    Refer to PROCEDURE - Step 4
  5. REMOVE USB CHARGER SOCKET
    1. GTY1214706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  6. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY
    1. GTY1211245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the No. 1 power outlet socket assembly.

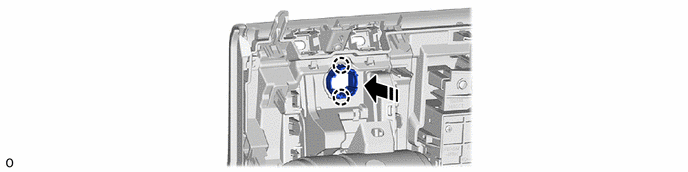

  7. REMOVE CIGARETTE LIGHTER INDICATOR LENS
    1. GTY1216145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
