Removal [12/2023 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  2. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
    Refer to PROCEDURE - Step 2
  3. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION
    1. Use the same procedure described for the No. 2 instrument panel finish panel cushion.
  4. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    Refer to PROCEDURE - Step 4
  5. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

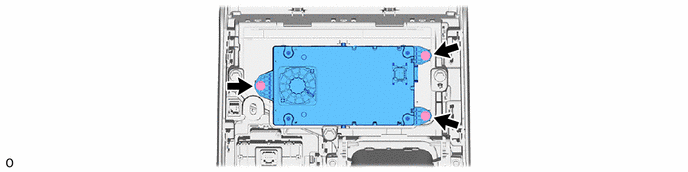

    1. GTY1211689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
