Disassembly [12/2023 - ]: Procedure

  1. REMOVE NO. 2 COOL BOX PANEL

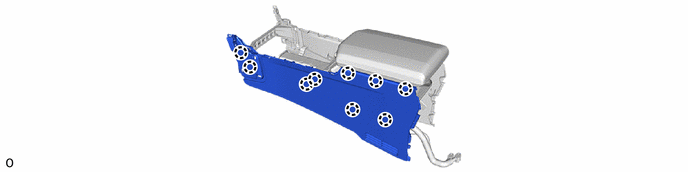

    1. GTY1214427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 COOL BOX RETAINER

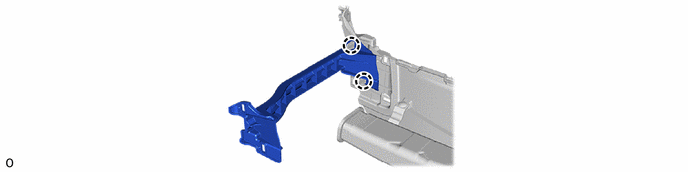

    1. GTY1214418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 COOL BOX RETAINER
    1. GTY1218852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 COOL BOX PANEL
    1. GTY1216080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 CONSOLE BOX DUCT (w/ Rear Register Duct)

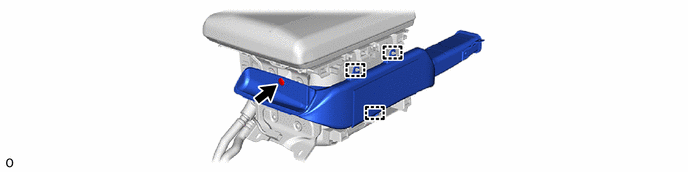

    1. GTY1214417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COOL BOX CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

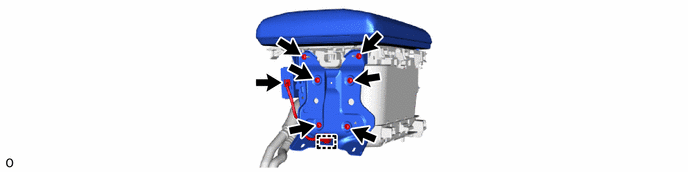

    1. GTY1214414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR PURIFIER AMPLIFIER ASSEMBLY

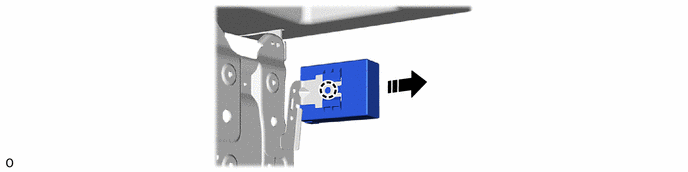

    1. GTY1217008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE UPPER CONSOLE BOX

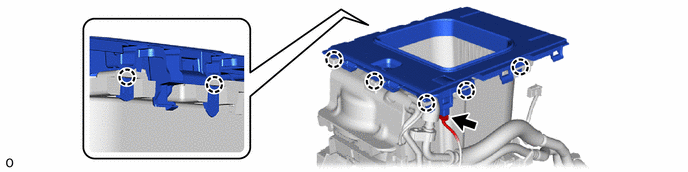

    1. GTY1214413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BLOWER CONTROL SWITCH ASSEMBLY

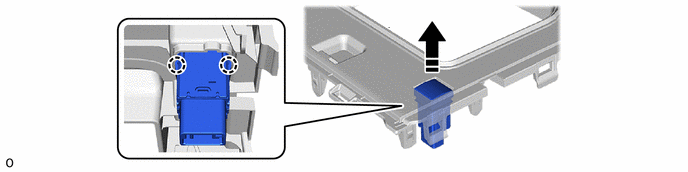

    1. GTY1213368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE FRONT CONSOLE BOX COVER
    1. GTY1214419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT AIR CONDITIONER HARNESS

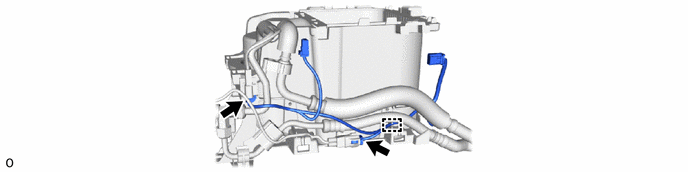

    1. GTY1214420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 COOLING BOX ASSEMBLY

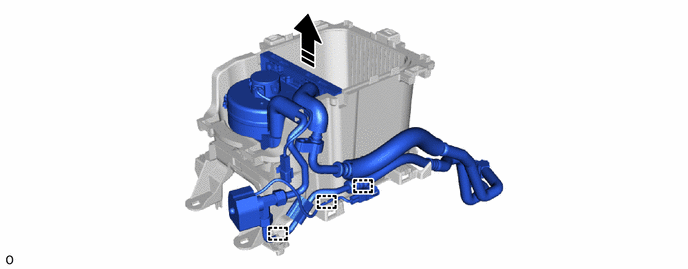

    1. GTY1216379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  13. REMOVE NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
    1. GTY1215078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and No. 1 cooler refrigerant discharge hose.
      2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  14. REMOVE LIQUID HOSE A
    1. GTY1211097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and liquid hose A.
      2. Remove the O-ring from the liquid hose A.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  15. REMOVE COOLER REFRIGERANT LIQUID PIPE A
    1. GTY1216778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the cooler refrigerant liquid pipe A using the following procedure.

        1. Using a union nut wrench, loosen the nut and remove the cooler refrigerant liquid pipe A.

        2. Remove the O-ring from the cooler refrigerant liquid pipe A.

        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  16. REMOVE COOLER MAGNET VALVE ASSEMBLY
    1. GTY1213225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a union nut wrench, loosen the nut and remove the cooler magnet valve assembly.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  17. REMOVE COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY
    1. GTY1215471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bracket - -
  18. REMOVE COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY
    NOTE:

    When the cooler (cool box) evaporator sub-assembly is removed, make sure to install a new one. The cooler (cool box) evaporator sub-assembly cannot be reused.

    1. GTY1213568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cooling Unit Case Sub-assembly - -
      Remove in this Direction - -
  19. REMOVE CONSOLE BOX WIRE

    See step  4

  20. REMOVE USB CHARGER SOCKET

    See step  5

  21. REMOVE STEREO JACK ADAPTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  22. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY
    Refer to PROCEDURE - Step 6
  23. REMOVE CIGARETTE LIGHTER INDICATOR LENS

    Refer to PROCEDURE - Step 7

  24. REMOVE NO. 4 COMBINATION SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 3

  25. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 4

  26. REMOVE SHIFT POSITION INDICATOR

    Refer to PROCEDURE - Step 3

  27. REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY

    See step  12

  28. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

    Refer to PROCEDURE - Step 5

  29. REMOVE CONSOLE BOX POCKET

    See step  14

  30. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    Refer to PROCEDURE - Step 1
  31. REMOVE TRANSFER POSITION SWITCH

    Refer to PROCEDURE - Step 3

  32. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  33. REMOVE REFRESHING SEAT SWITCH (w/ Rear Register Duct)

    Refer to PROCEDURE - Step 2

  34. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Rear Register Duct)

    Refer to PROCEDURE - Step 2

  35. REMOVE NO. 2 USB CHARGER SOCKET

    Refer to PROCEDURE - Step 2

  36. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 4
