Removal [12/2023 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  2. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    Refer to PROCEDURE - Step 4

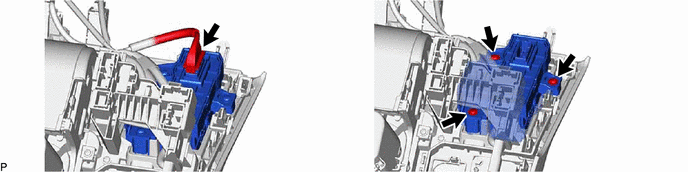

  3. REMOVE NO. 4 COMBINATION SWITCH ASSEMBLY (MULTI-TERRAIN SELECT SWITCH)
    1. GTY1213759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
