Installation [03/2017 - 06/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Lift up the instrument panel safety pad sub-assembly and set it on the vehicle as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Push as shown in the illustration to insert the guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

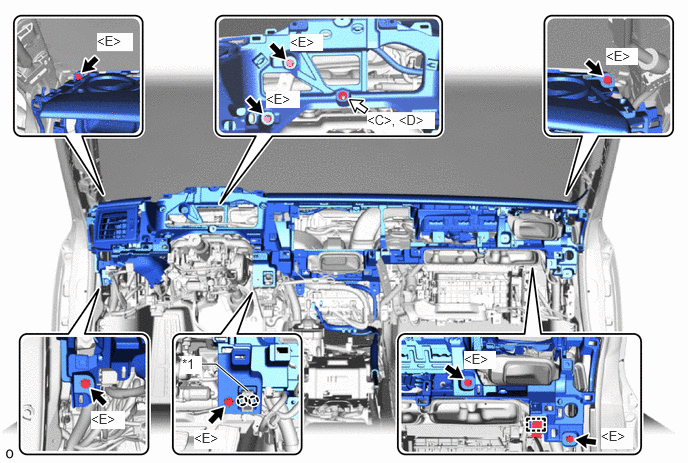

Install the instrument panel safety pad sub-assembly with the 8 bolts <E> and nut <C> or <D>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Cooler Thermistor (Recirculated Air Temperature)	-	-
	Bolt <E>		Nut <C> or <D>

Attach the claw to install the cooler thermistor (recirculated air temperature) to the instrument panel safety pad sub-assembly.
Attach the clamp.

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the connector and attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

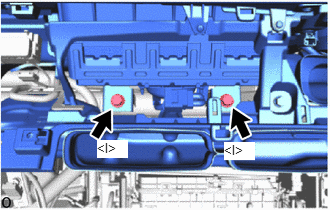

Install the 2 bolts <I>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

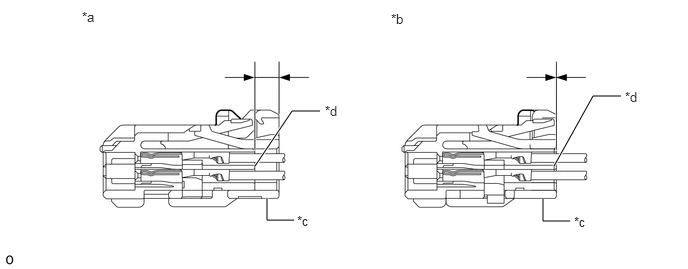

Before connecting the airbag connector, check that the CPA is positioned further back than the housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	CORRECT	*b	INCORRECT
*c	CPA	*d	Housing

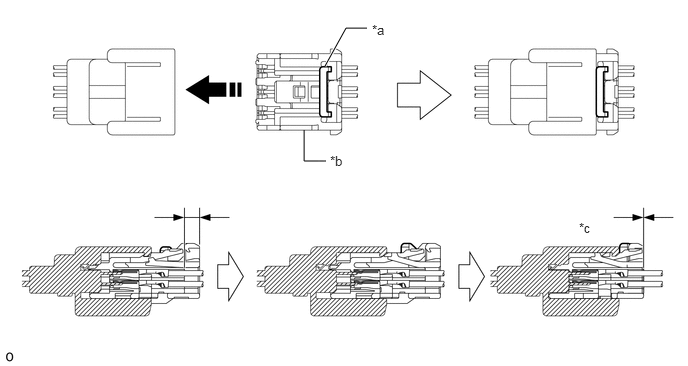

Connect airbag connector:

Holding the sides of the CPA, connect it by engaging until a locking sound is heard.

NOTE:

When connecting the airbag connector, press and connect it straight so as not to twist it.
When connecting the connector, do not hold components other than the CPA.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Housing Lock	*b	CPA
*c	CONNECTED	-	-
	Install in this Direction	-	-

INSTALL NO. 3 SIDE DEFROSTER NOZZLE DUCT

Install the No. 3 side defroster nozzle duct.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 4 SIDE DEFROSTER NOZZLE DUCT
HINT:

Use the same procedure described for the No. 3 side defroster nozzle duct.

INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

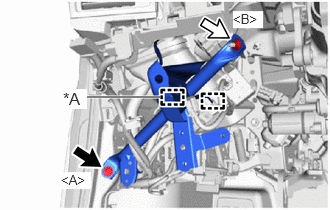

Install the No. 3 instrument panel to cowl brace sub-assembly with the bolt <A> and nut <B>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Clearance Sonar System
	Bolt <A>
	Nut <B>

Bolt <A>

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Nut <B>

Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

Attach the clamps.

INSTALL HEATER TO REGISTER CENTER SUB DUCT

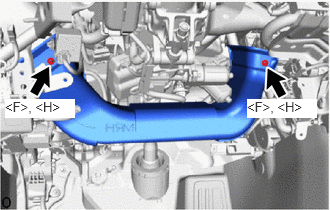

Install the heater to register center sub duct with the 2 screws <F> or <H>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 2 AIR DUCT

Insert the No. 2 air duct in the direction of the arrow shown in the illustration to install it with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

INSTALL STEERING WHEEL SWITCH HOUSING
Refer to INSTALLATION [03/2017 - 05/2023]
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 3

INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

Insert the guides in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

Attach the claws to install the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.

Attach the claw to install the connector holder to the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

Insert the guides in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

Attach the claws to install the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.

INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 28
INSTALL FRONT PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.
INSTALL MULTI-DISPLAY
Refer to PROCEDURE - Step 1

INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Attach the clamps and pull the hook.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clamp
*b	Hook

Connect the 3 connectors.

Attach the claws in the direction of the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

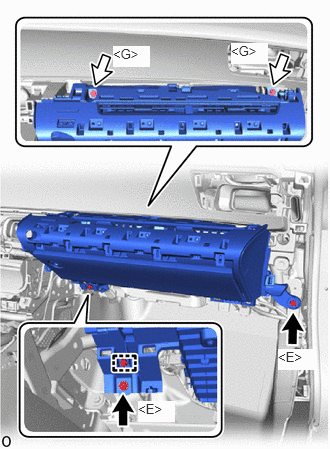

Install the glove compartment door assembly with the 2 bolts <E> and 2 screws <G>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt <E>
	Screw <G>

Attach the clamp.

INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL NO. 2 GLOVE COMPARTMENT PANEL

Attach the claws in the direction of the arrow shown in the illustration to install the No. 2 glove compartment panel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Insert the guides in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Connect the connector.

Lift up the No. 2 instrument panel under cover sub-assembly in the direction of the arrow shown in the illustration and attach the claws to install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

Remove the protective tape.
Connect the connector.

Attach the claws as shown in the direction of the arrow shown in the illustration to install the No. 2 instrument panel register assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL DCM (TELEPHONE TRANSCEIVER)
Refer to PROCEDURE - Step 1
INSTALL ANTENNA DIVIDER
Refer to PROCEDURE - Step 12
INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 5
INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL INSTRUMENT PANEL REGISTER BEZEL

Attach the claws as shown in the direction of the arrow shown in the illustration to install the instrument panel register bezel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Attach the clamps and connect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the clamp and connect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the clips in the direction of the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the claws and align the guides as shown in the direction of the arrow shown in the illustration to install the No. 1 instrument panel safety pad sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

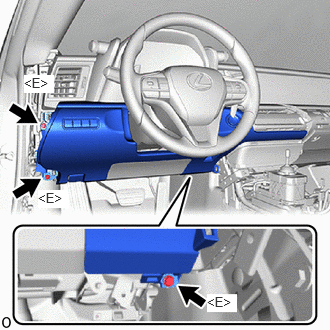

Install the 3 bolts <E>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Align the guides and attach the claw, connect the hood lock control lever sub-assembly to the No. 1 instrument panel safety pad sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Remove the protective tape.

Attach the claws and guides as shown in the direction of the arrow shown in the illustration to install the No. 2 instrument panel garnish sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [03/2017 - 05/2023]

INSTALL NO. 1 GLOVE COMPARTMENT PANEL

Attach the clips in the direction of the arrow shown in the illustration to install the No. 1 glove compartment panel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Insert the guides in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Connect the connector.

Attach the claw in the direction of the arrow shown in the illustration.

Install in this Direction

Attach the claws in the direction of the arrow shown in the illustration to install the No. 1 instrument panel under cover sub-assembly.

Install in this Direction

Install the 2 screws.

INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH

Attach the claw and clip in the installation direction shown in the illustration.

Install in this Direction

Attach the claws in the direction of the arrow shown in the illustration to install the front door No. 2 opening trim cover LH.

Install in this Direction

INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER RH

Install in this Direction

Attach the claw and clip in the installation direction shown in the illustration.

Install in this Direction

Attach the claws in the direction of the arrow shown in the illustration to install the front door No. 2 opening trim cover RH.

INSTALL FRONT DOOR OPENING TRIM COVER LH

Attach the claws and insert the guide in the direction of the arrow shown in the illustration to install the front door opening trim cover LH.

Install in this Direction

INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure described for the LH side.

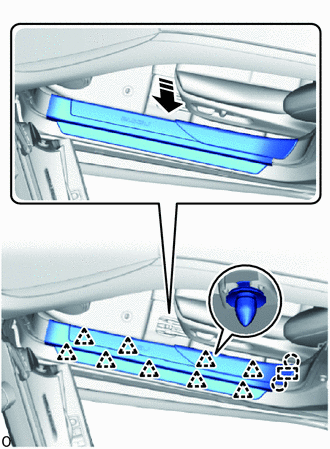

INSTALL FRONT DOOR SCUFF PLATE LH

Attach the claws and align the guide in the direction of the arrow shown in the illustration.

Install in this Direction

Attach the clips.

Attach the claw on the vehicle exterior side and align the guide.

Place hand here

Place your hand at the position shown in the illustration and while pulling towards the center of the vehicle, attach the claw to install the front door scuff plate LH.

INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.
INSTALL COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 2

INSTALL METER HOOD SUB-ASSEMBLY

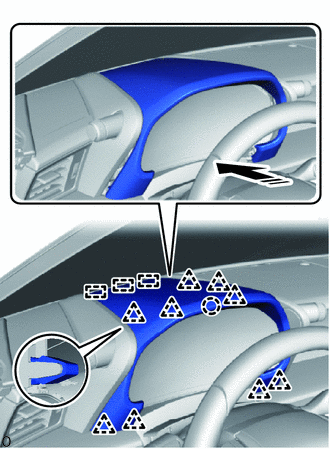

Insert the guides and attach the clips in the direction of the arrow shown in the illustration to install the meter hood sub-assembly.

Install in this Direction

Install the 2 screws.

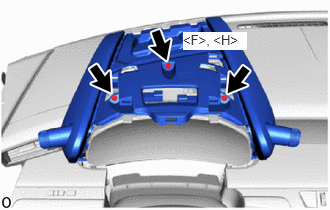

Install the screw <F> or <H> and 2 screws.

Connect the 2 connectors.

INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Set the center upper instrument cluster finish panel in the direction of the arrow shown in the illustration.

Install in this Direction

Insert the guides and attach the claws and clips in the direction of the arrow shown in the illustration to install the center upper instrument cluster finish panel.

Install in this Direction

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020]
INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13
INSPECT AUTOMATIC LIGHT CONTROL SYSTEM
Refer to OPERATION CHECK [03/2017 - 04/2020]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [03/2017 - 04/2020]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to CUSTOMIZE PARAMETERS [03/2017 - ]
CHECK STEERING WHEEL CENTER POINT
ADJUST PARKING ASSIST MONITOR SYSTEM
Refer to CALIBRATION [03/2017 - 05/2023]
