Installation [03/2017 - 04/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DCM (TELEMATICS TRANSCEIVER)

Connect the 5 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

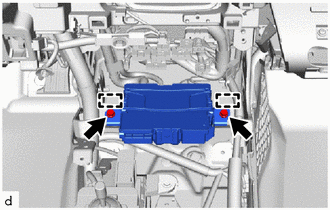

Temporarily install the DCM (telematics transceiver) by attaching the guides of the DCM (telematics transceiver) to the instrument panel.

Install the DCM (telematics transceiver) with the 2 bolts.

INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to INSTALLATION [03/2017 - 05/2023]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020]
INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13
DCM ACTIVATION
HINT:

When replacing the DCM (telematics transceiver), perform DCM activation.

Refer to DCM ACTIVATION [03/2017 - 04/2020]
LEXUS ENFORM REMOTE REGISTRATION
1. For LEXUS ENFORM Remote compatible type
  HINT:

  When replacing the DCM (telematics transceiver), perform LEXUS ENFORM remote registration.

  Refer to REGISTRATION [03/2017 - 09/2018] , or refer to REGISTRATION [09/2018 - 04/2020]
