Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Check that the engine switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

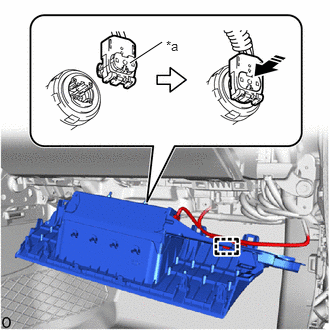

Connect the airbag connector and push the lock button to the lower No. 2 instrument panel airbag assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Button
	Push

NOTE:

When connecting any airbag connector, take care not to damage the airbag wire harness.
Make sure the lock button is securely locked.

Attach the claw to install the lower No. 2 instrument panel airbag assembly.

Install in this Direction

Install the 3 bolts.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
INSTALL BOX PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL UPPER CONSOLE BOX
Refer to PROCEDURE - Step 6
INSTALL SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 9
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY
Refer to PROCEDURE - Step 4
INSTALL REAR CONSOLE BOX POCKET
Refer to PROCEDURE - Step 12
INSTALL NO. 2 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 17 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 17 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 17 [04/2020 - 05/2023]
INSTALL NO. 1 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 29 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 29 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 29 [04/2020 - 05/2023]
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 30 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 30 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 30 [04/2020 - 05/2023]
INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER RH
Refer to PROCEDURE - Step 32 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 32 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 32 [04/2020 - 05/2023]
INSTALL FRONT DOOR OPENING TRIM COVER RH
Refer to PROCEDURE - Step 33 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 33 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 33 [04/2020 - 05/2023]
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and LH side.

Refer to PROCEDURE - Step 35 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 35 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 35 [04/2020 - 05/2023]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [03/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
