Disassembly [12/2021 - ]: Procedure
- PRECAUTION WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [12/2021 - ]
NOTE:After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [12/2021 - ]
- REMOVE DOOR ASSIST GRIP COVER

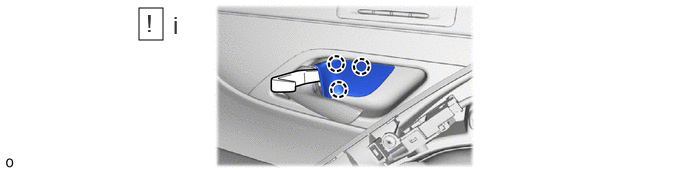

- REMOVE FRONT DOOR INSIDE HANDLE BEZEL
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

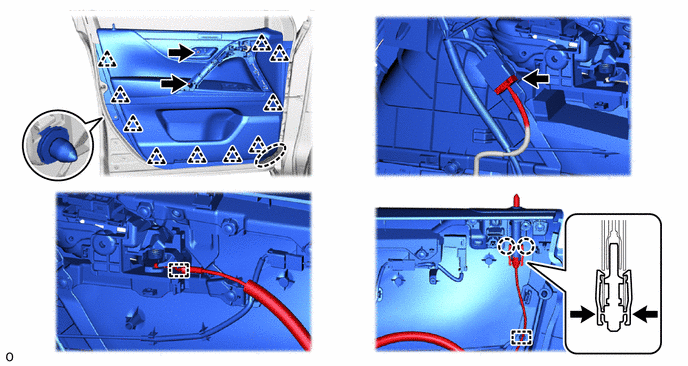

- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

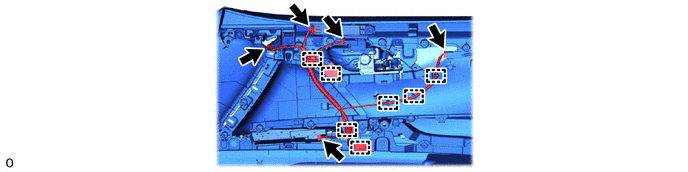

- REMOVE FRONT DOOR WIRE
- REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE SEAT MEMORY SWITCH
Refer to PROCEDURE - Step 6 - REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- REMOVE DOOR LOCKING BEZEL

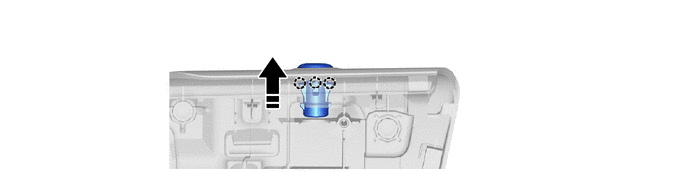

- REMOVE DOOR LOCK CONTROL KNOB HOLDER

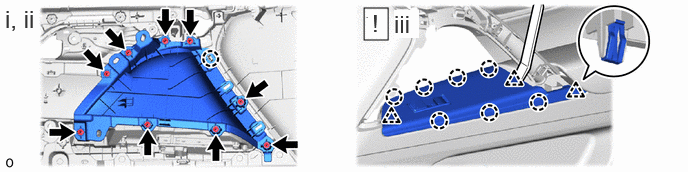

- REMOVE UPPER FRONT DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY
Refer to PROCEDURE - Step 7 - REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for 25 Speakers)
Refer to PROCEDURE - Step 6 - REMOVE FRONT UPPER ARMREST BASE PANEL (for Driver Side)
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

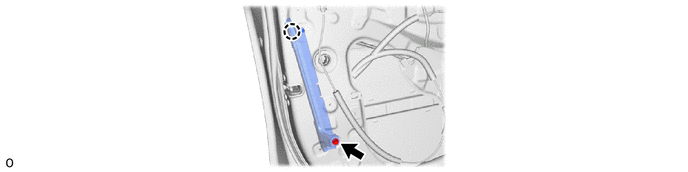

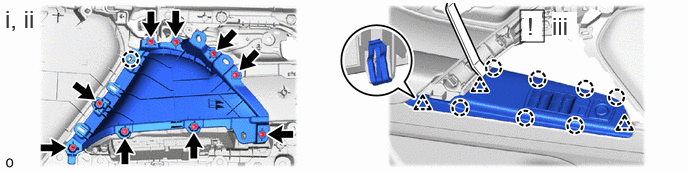

- REMOVE NO. 2 DOOR TRIM BRACKET
Refer to PROCEDURE - Step 10
- REMOVE FRONT DOOR TRIM BASE SUB-ASSEMBLY WITH DOOR INSIDE HANDLE SEAL
Refer to PROCEDURE - Step 11 - REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

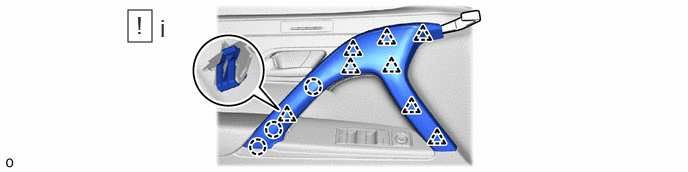

Refer to PROCEDURE - Step 12 - REMOVE FRONT DOOR TRIM ORNAMENT SUB-ASSEMBLY

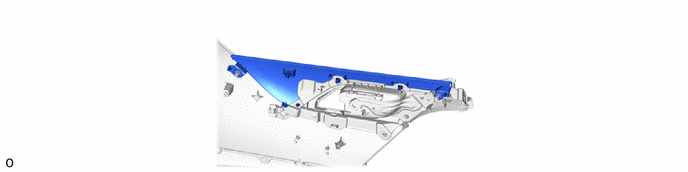

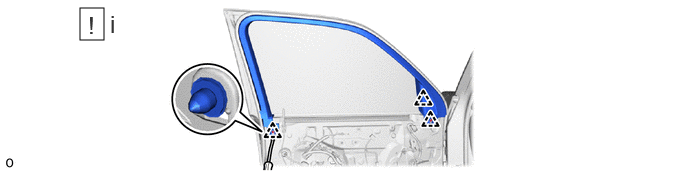

- REMOVE DOOR FRAME GARNISH

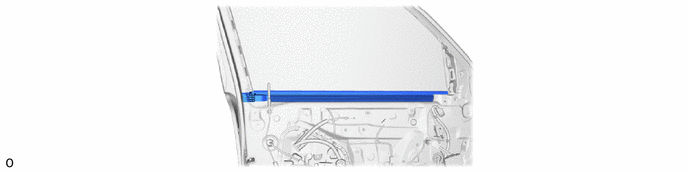

- REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
- REMOVE FRONT DOOR PANEL PROTECTOR
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 7 - REMOVE FRONT DOOR SERVICE HOLE COVER

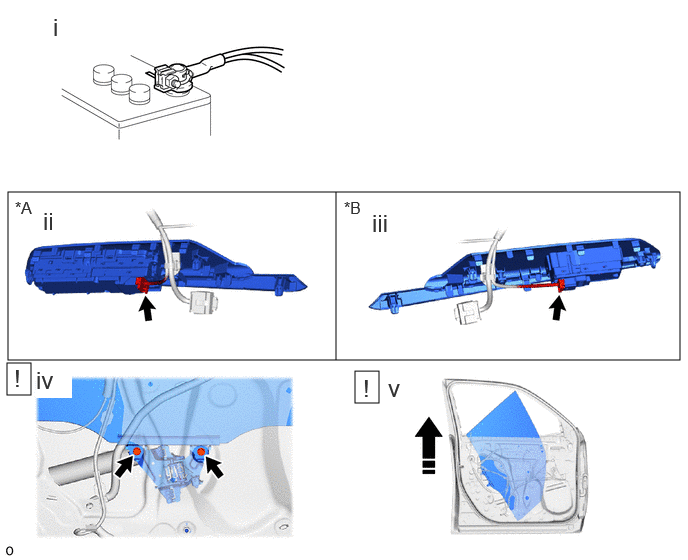

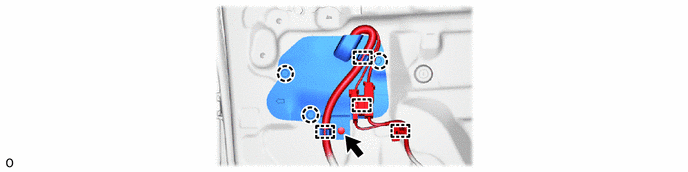

*a Location Mark *b Bead Mark Turn in this Direction - - - Disconnect the connectors and disengage the clamps.

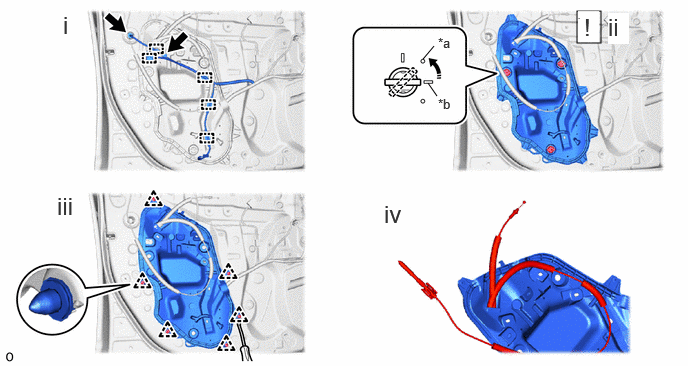

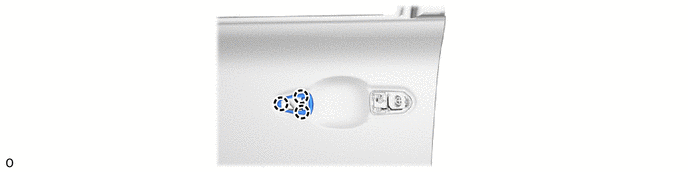

- Turn the 3 front door service hole cover clips 45° to remove it clips as shown in the illustration.
- Use the clip remover with its tip wrapped in protective tape, disengage the clips to remove front door service hole cover.
- Pull out the open lever front door lock remote control cable and front door inside lock and unlock knob locking cable from the front door service hole cover.
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

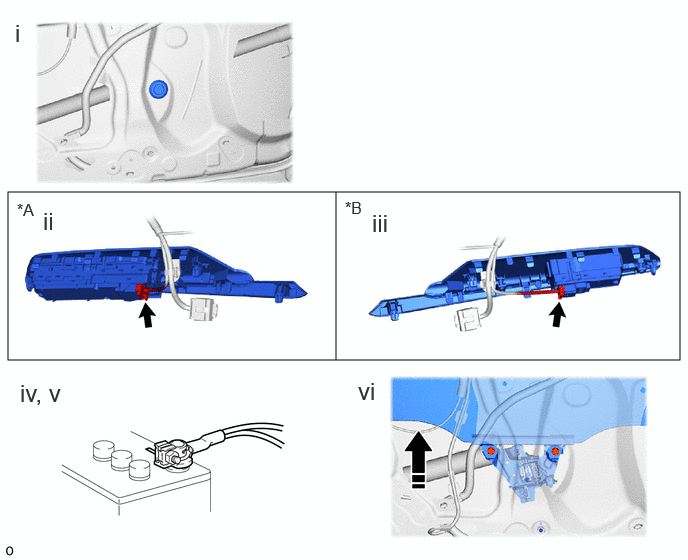

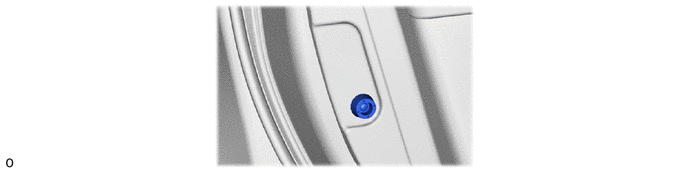

*A for Driver Side *B for Front Passenger Side Remove in this Direction - - - Remove the hole plug.
- for Driver Side:
1. Connect the connectors to the multiplex network master switch assembly with front door armrest base panel.
- for Front Passenger Side:
1. Connect the connector to the power window regulator switch assembly with front door armrest base panel.
- Connect the cable to the negative (-) auxiliary battery terminal.
Refer to INSTALLATION [12/2021 - ]
- Turn the ignition switch to ON.
- Move the front door glass sub-assembly so that the door glass bolts can be seen and turn the ignition switch to OFF.
*A for Driver Side *B for Front Passenger Side Remove in this Direction - - - Disconnect the cable from the negative (-) auxiliary battery terminal.
Refer to REMOVAL [12/2021 - ]
- for Driver Side:
1. Disconnect the connectors from the multiplex network master switch assembly with front door armrest base panel.
- for Front Passenger Side:
1. Disconnect the connector from the power window regulator switch assembly with front door armrest base panel.
- Remove the 2 bolts.NOTE:
After the bolts are removed, do not allow the front door glass sub-assembly to fall.
- Remove the front glass sub-assembly as shown in the illustration.NOTE:
Do not damage the front door glass sub-assembly.
- Disconnect the cable from the negative (-) auxiliary battery terminal.

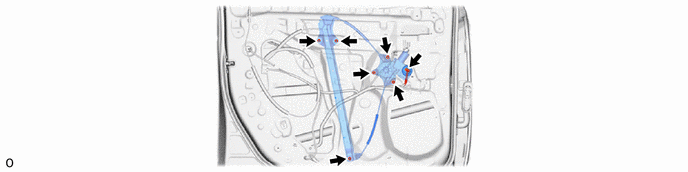

- REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY

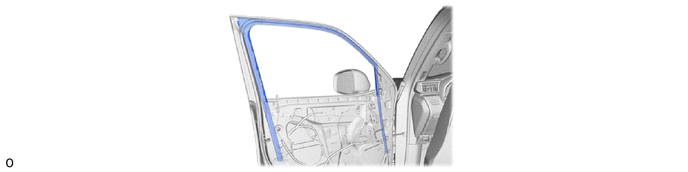

- REMOVE FRONT DOOR GLASS RUN
- REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
- REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

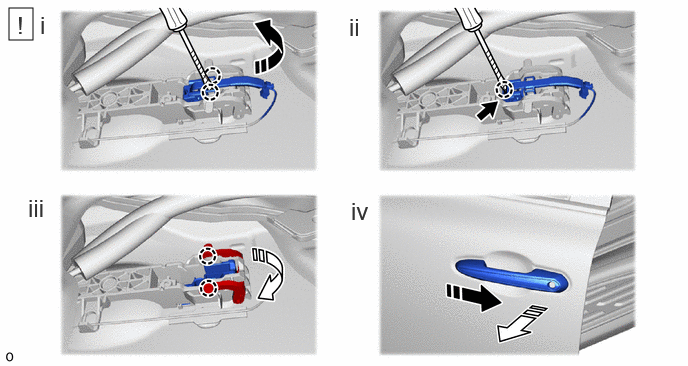

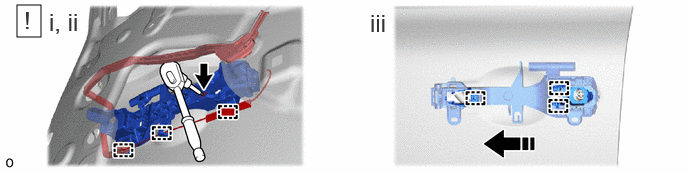

Remove in this Direction (1) Remove in this Direction (2) - Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
- Using a screwdriver with its tip wrapped in protective tape, disconnect the connector.

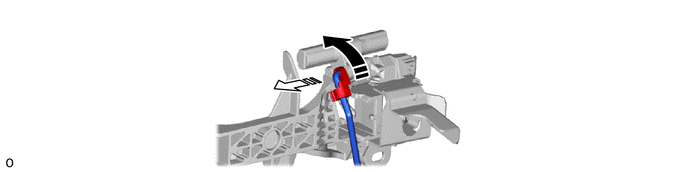

- Disengage the claws and move the lever as shown in the illustration.
- Remove the front door outside handle assembly as shown in the illustration.
- REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

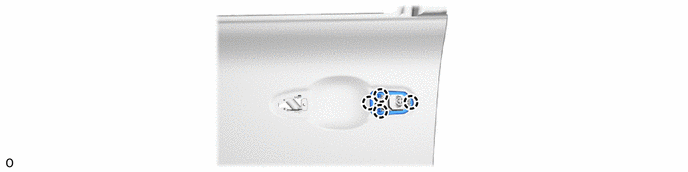

- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

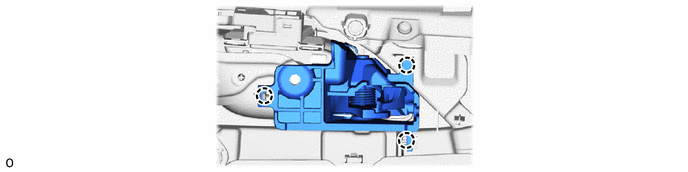

- REMOVE DOOR LOCK COVER SET
Refer to PROCEDURE - Step 14
- REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY (w/ Easy Closer)
Refer to PROCEDURE - Step 15 - REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY (w/o Easy Closer)
Refer to PROCEDURE - Step 16 - REMOVE FRONT DOOR OUTSIDE HANDLE FRONT PAD
- REMOVE FRONT DOOR OUTSIDE HANDLE REAR PAD
- REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

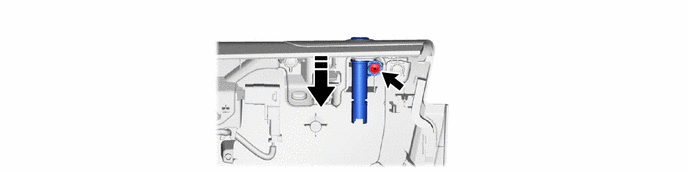

- REMOVE FRONT DOOR LOCK OPEN ROD
- REMOVE SIDE AIRBAG PRESSURE SENSOR

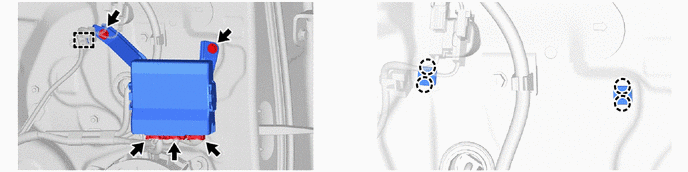

Refer to PROCEDURE - Step 9 - REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/o Easy Closer)
Refer to PROCEDURE - Step 6 - REMOVE FRONT MULTIPLEX NETWORK DOOR ECU (w/ Easy Closer)
- REMOVE OUTER MIRROR INSTALL HOLE COVER
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
Refer to PROCEDURE - Step 9 - REMOVE FRONT DOOR VENT SEAL
- REMOVE FRONT DOOR NO. 2 WETHERSTRIP
- REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

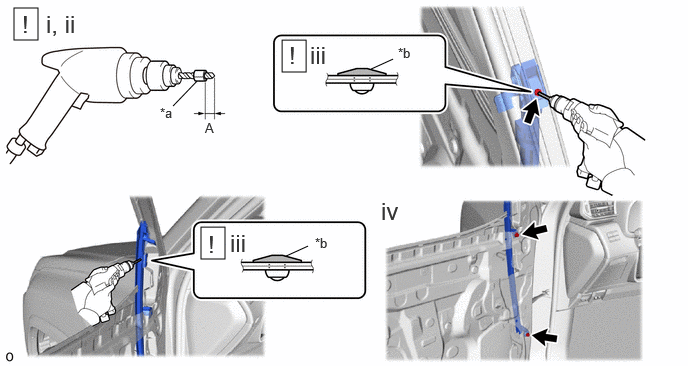

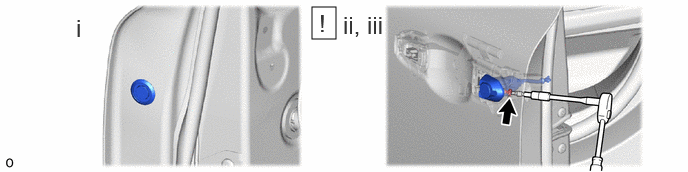

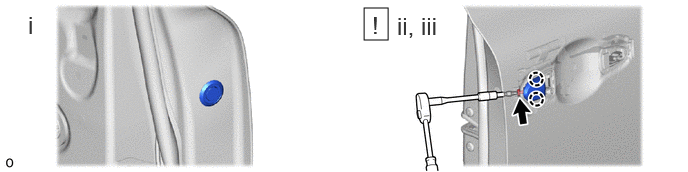

*a Tape *b Flange - Insert a 4.0 mm (0.157 in.) drill bit into a drill.
- Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement
Area Measurement Area Measurement A 5.0 mm (0.197 in.) - - NOTE:Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.
- Lightly press the drill against the rivets to drill off the rivet flange, and remove the rivets.WARNING:
Be careful of the drilled rivet, as they may be hot.
NOTE:- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivet with the drill may damage the rivet installation holes or drill bit.
- Remove the 2 bolts and front door front lower frame sub-assembly.

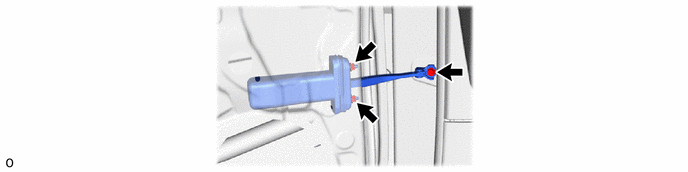

- REMOVE FRONT DOOR CHECK ASSEMBLY
- REMOVE FRONT DOOR WEATHERSTRIP
- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 12 - REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 2 - REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING

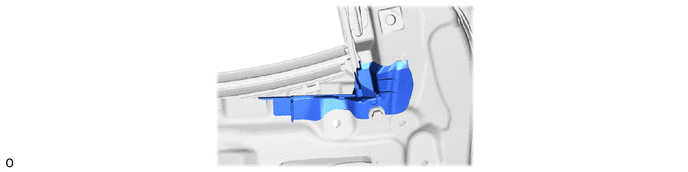

Refer to PROCEDURE - Step 4 - REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER
Refer to PROCEDURE - Step 5 - REMOVE FRONT DOOR REAR OPENING TRIM WEATHERSTRIP

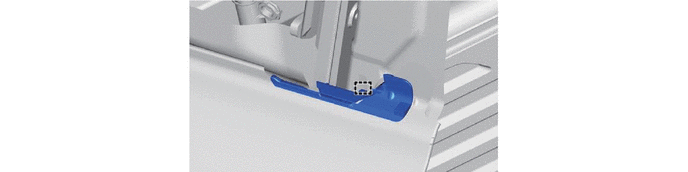

- REMOVE FRONT DOOR REAR OUTSIDE SEAL
- REMOVE FRONT DOOR PANEL CUSHION

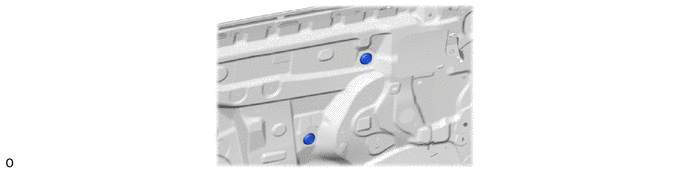

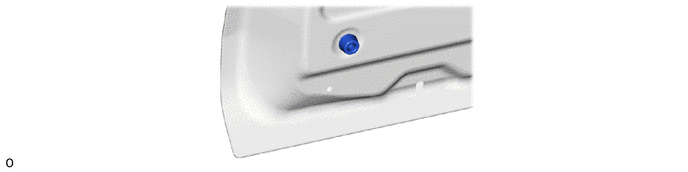

- REMOVE HOLE PLUG
- REMOVE FRONT DOOR NO. 3 WETHERSTRIP
HINT:

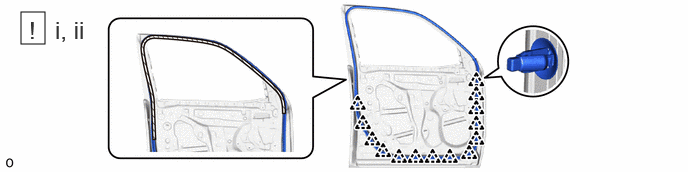

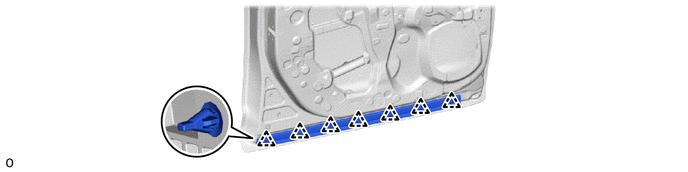

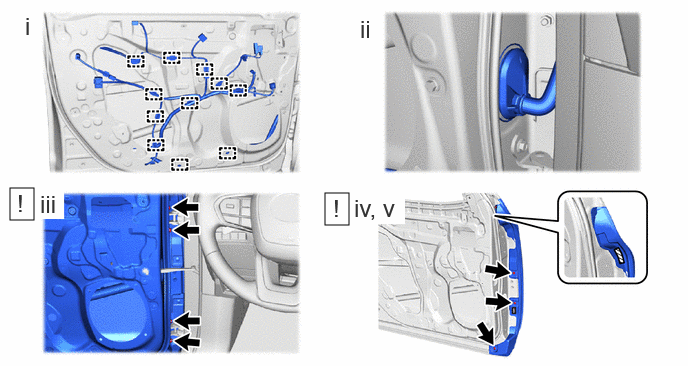

In order to remove the front door No. 3 weatherstrip, first remove the front door panel.Double-sided Tape - - - Detach the clamps of the front door wire.
- Disconnect the front door wire from the front door panel.
- Remove the 4 bolts and front door panel.WARNING:
Be sure to perform this procedure with 2 or more persons as the part is very heavy.
- Remove the clips.
- Remove the double-sided tape and front door weatherstrip.NOTE:
Remove any remaining double-sided tape from the front door panel.
