Removal [12/2021 - ]: Procedure

  1. REMOVE DOOR ASSIST GRIP COVER
    Refer to PROCEDURE - Step 3
  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 4
  3. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/o Easy Closer)
    See step  6
  7. REMOVE MULTIPLEX NETWORK FRONT DOOR ECU (w/ Easy Closer)

    Refer to PROCEDURE - Step 44

  8. REMOVE OUTER MIRROR INSTALL HOLE COVER

    Refer to PROCEDURE - Step 45

  9. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

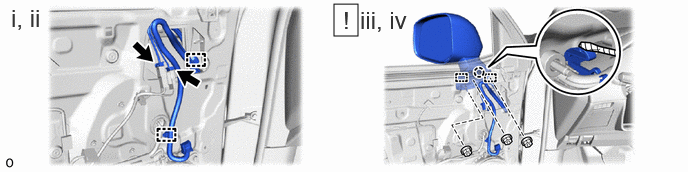

    1. GTY1082295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Detach the clamp.
      3. Remove the 3 nuts.
        NOTE:

        Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

      4. Using a thin-bladed screwdriver, detach the claw and guide to remove the outer rear view mirror assembly LH.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
