Removal [12/2021 - ]: Procedure
- REMOVE DOOR ASSIST GRIP COVER
Refer to PROCEDURE - Step 3 - REMOVE FRONT DOOR INSIDE HANDLE BEZEL
Refer to PROCEDURE - Step 4 - REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION
Refer to PROCEDURE - Step 6
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY LH

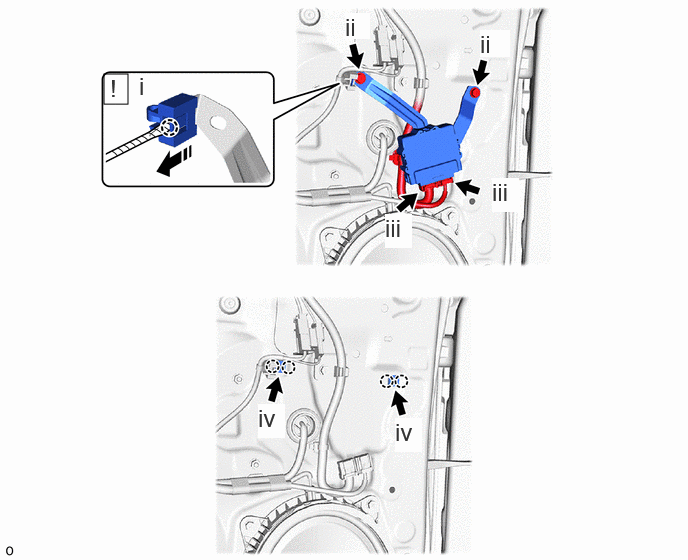

Remove in this Direction - - - Using a thin-bladed screwdriver, detach the claw and remove the connector clamp as shown in the illustration.
HINT:
Tape the thin-bladed screwdriver tip before use.
- Remove the 2 screws and outer mirror control ECU assembly LH.
- Disconnect the 2 connectors.
- Detach the claw and remove the 2 grommets.
- Using a thin-bladed screwdriver, detach the claw and remove the connector clamp as shown in the illustration.
