Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 4
  2. REMOVE DOOR ASSIST GRIP COVER
    Refer to PROCEDURE - Step 3
  3. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

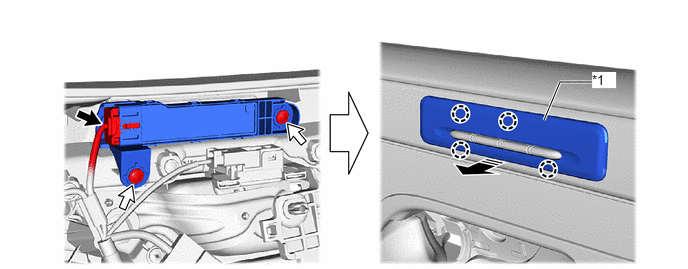

  6. REMOVE SEAT MEMORY SWITCH
    1. GTY1058478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 SWITCH BEZEL - -
      Remove in this Direction Connector
      Screw - -
