Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2021 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE DOOR ASSIST GRIP COVER
    Refer to PROCEDURE - Step 3
  4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 4
  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  6. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT DOOR SERVICE HOLE COVER LH
    Refer to PROCEDURE - Step 27
  9. REMOVE SIDE AIRBAG PRESSURE SENSOR LH
    1. GTY1057794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turns off - -
      1. Check that the ignition switch is off.
      2. Check that the cable is disconnected from the negative (-) battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
        • If the airbag deploys for any reason, it may cause a serious accident.

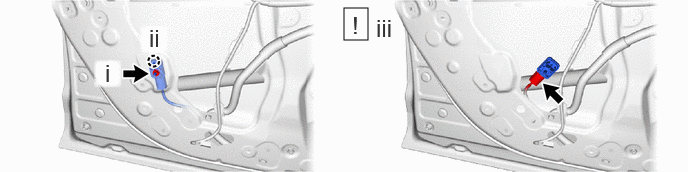

    2. GTY1058132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut.
      2. Detach the claw and pull out the side airbag pressure sensor LH.
      3. Disconnect the airbag connector and remove the side airbag pressure sensor LH.
        NOTE:
        • When disconnecting any airbag connector, take care not to damage the airbag wire harness.
        • If the side airbag pressure sensor LH has been dropped, replace it with a new one.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2021 - ]
