Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Refer to PRECAUTION [12/2021 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE DOOR ASSIST GRIP COVER
    Refer to PROCEDURE - Step 3
  4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 4
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 5
  6. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE DOOR FRAME GARNISH
    Refer to PROCEDURE - Step 23
  9. REMOVE FRONT DOOR SERVICE HOLE COVER
    Refer to PROCEDURE - Step 27
  10. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - Step 24

  11. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 30

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    Refer to PROCEDURE - Step 28
  13. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

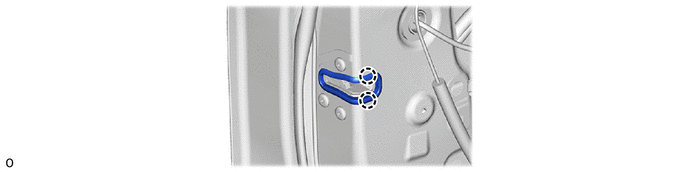

  14. REMOVE DOOR LOCK COVER SET
    1. GTY1056313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

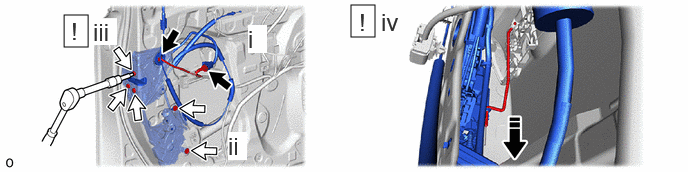

  15. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY (w/ Easy Closer)
    1. GTY1055524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the 2 connectors.
      2. Remove the 2 bolts.
      3. Using a T30 "TORX" socket wrench, remove the 3 screws and front door lock with motor assembly.
      4. Remove the front door lock with motor assembly as shown in the illustration.

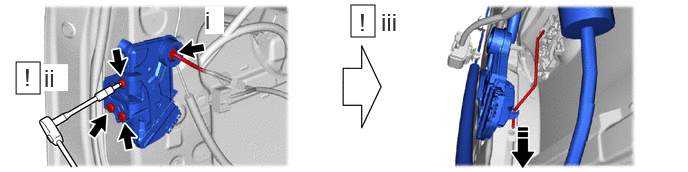

  16. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY (w/o Easy Closer)
    1. GTY1056063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the connector.
      2. Using a T30 "TORX" socket wrench, remove the 3 screws and front door lock with motor assembly.
      3. Remove the front door lock with motor assembly as shown in the illustration.

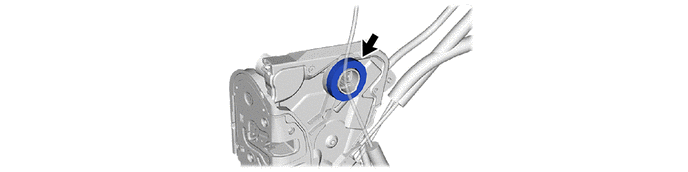

  17. REMOVE DOOR LOCK WIRING HARNESS SEAL (w/ Easy Closer)
    NOTE:

    When reusing a removed front door lock with motor assembly, replace the door lock wiring harness seal with a new one.
    1. GTY1056304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE DOOR LOCK WIRING HARNESS SEAL (w/o Easy Closer)
    NOTE:

    When reusing a removed front door lock with motor assembly, replace the door lock wiring harness seal with a new one.
    1. GTY1082250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

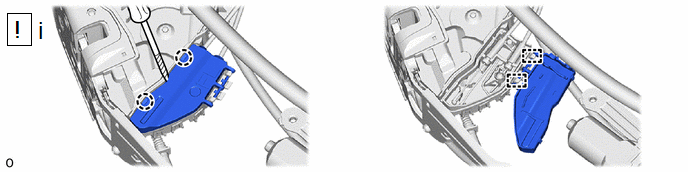

  19. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY (w/ Easy Closer)
    1. GTY1055963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

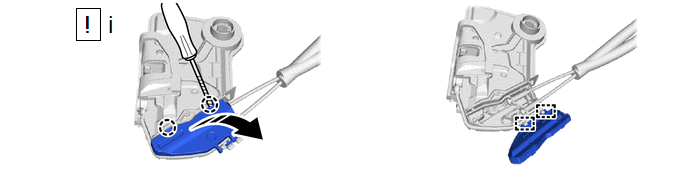

  20. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY (w/o Easy Closer)
    1. GTY1057254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

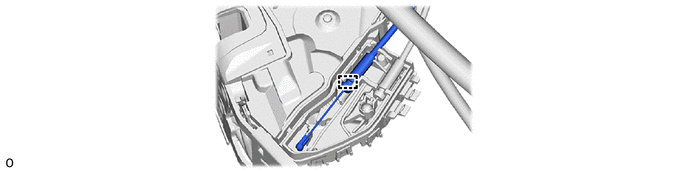

  21. REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE (w/ Easy Closer)
    1. GTY1056929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

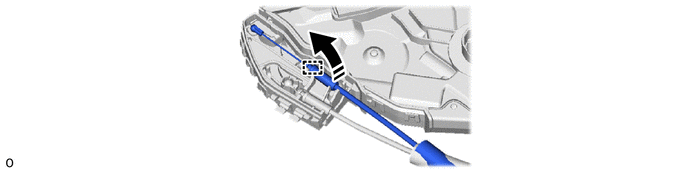

  22. REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE (w/o Easy Closer)
    1. GTY1082677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

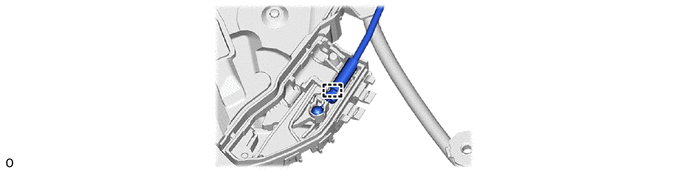

  23. REMOVE FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE (w/ Easy Closer)
    1. GTY1056285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

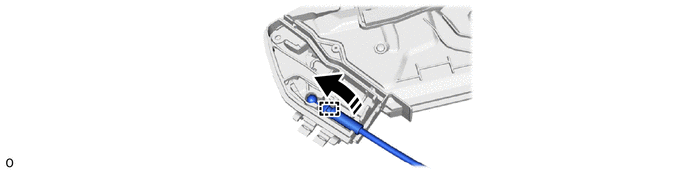

  24. REMOVE FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE (w/o Easy Closer)
    1. GTY1082261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
